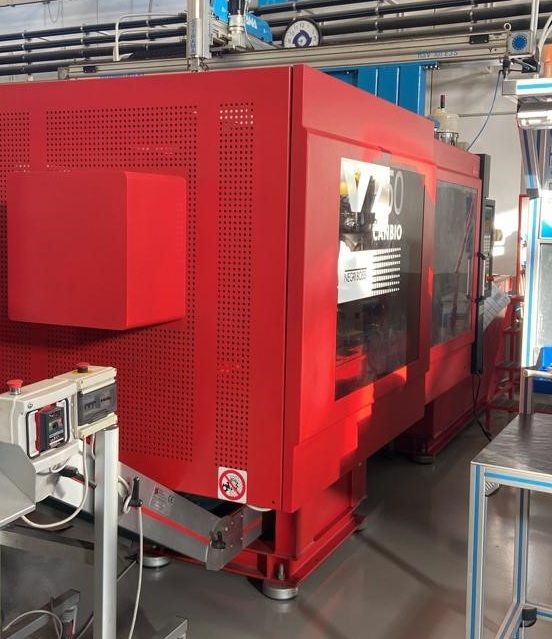

Negri Bossi 250 T
EUROPE (Western and Northern)
Maximum Travel of Mobile Table: 550 mm
Max light between floors: 1300 mm
Passage X columns 630 mm
Y passage of columns 530 mm
Length of the table 900 mm
Width of the table top 790 mm
Min/Max Mould Thickness: 300/750 mm
Mold size: L x W x H 7050 × 1640 × 2215 mm
Max Extraction Stroke: 220 mm
Extraction Force: 45 Kn
Max Installed Power: 56 Kw
Cylinder: H 1600
Screw Diameter: 60 mm
Injection Capacity: 880 cm
Pressure on the material: 1840 Bar
Polystyrene Injection Capacity: 800g
Polypropylene Injection Capacity: 690 g
Laminating Capacity per Second: 57 g/s
Screw Rotation Speed: 250 rpm
Drawing Motor: HYDRAULIC
Accessories: Robot Interface - 2 Oil Jacks - 3 Blowers
Machine Weight: KG. 9,660.
