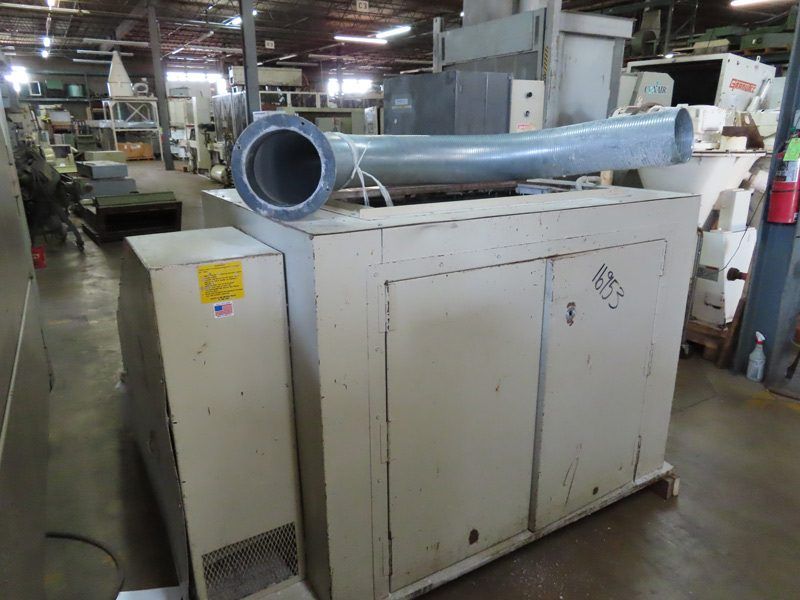

Nelmor G1436MB

14″ x 36″ feed throat
3 knife solid rotor
2 bed knife
100HP 230/460V 1,770 RPM motor
Wire for 460V. MB series heavy duty out-board bearing design.
8″ OD right hand airveyor discharge.
Insulated body panels.
Chamber mounted to 85″ x 76″ plate sheet feed hopper with a 36″ wide x 5.5″ opening
and approximately 66″ long.
1/2″ holes screens are installed.
Includes a soft starter control panel.
also includes a medium cyclone that measures 36″ diameter barrel, 23″ straight side,
68″ long cone, with an 8″ inlet and 9″ outlet, with an approximately 20″ top opening
and single bag filter head.
