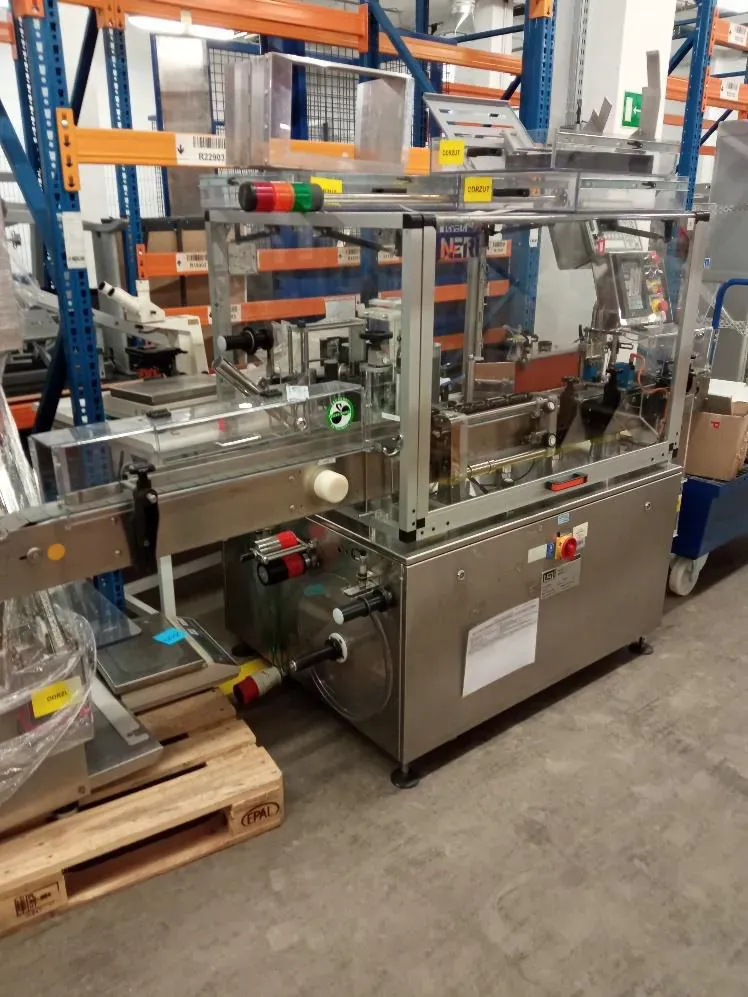

Neri SL300, Labeller

GENERAL DESCRIPTION
The labeling device /labeling machine/ is designed for applying self-adhesive labels to cylindrical objects.
– Object diameter from 15 to 80 mm.
– Device made of stainless steel and anodized aluminum.
– Items fed on a variable speed conveyor belt.
– Labelling tape unwinder with variable unwinding speed.
– Label tape dispensing at variable speeds up to 51
m/minute.
– Electrical installation compliant with standards /norms/.

TECHNICAL SPECIFICATIONS
Bottle diameter: 15 - 80 mm
Label height: 10-120 mm
Label width: 13 - 250 mm
Maximum capacity: 300 pieces/minute
Maximum outer diameter of the spool: 400 mm
Spool core diameter: 44/75 mm
Power supply: 220/380/415 V - 50 Hz
Installed power: 2.0 kW
Compressed air: 6 bar
Maximum compressed air consumption for NERI printing unit: 20Nl/min

OVERALL DIMENSIONS
Foundation area: 910 x 1150 mm
Overall external dimensions /including conveyor
tape/: 910 x 2500
Height: 1900 mm
Net weight: 340 kg
