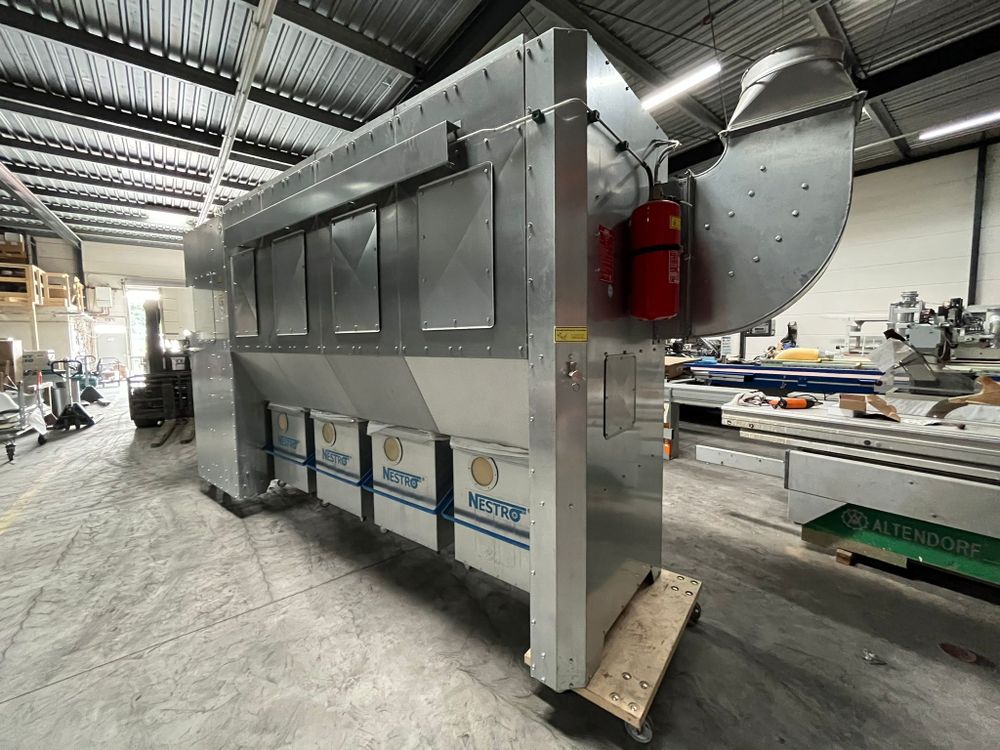

Nestro NE 350 JET

Dust collector
Used machine

Equipment and technical specifications:
NE350 P dust extractor, right-hand side, with jet shaking and automatic powder extinguishing system.
Straight suction nozzle diameter = 350 mm, 5 m cable with plug and reversing switch, 11.0 kW electric motor,
400 V/50 Hz, on/off switch, potential-free contact for machine monitoring, motor protection switch,
pressure difference indicator, pneumatic vibration, galvanized sheet steel housing

Technical specifications:
Nominal flow rate: 6927 m³/h
Related negative pressure: 2,400 Pa
Suction-side connection diameter = 350 mm
Operating mode: Continuous operation
Current type: Three-phase current
Power consumption: 11.0 kW / 19.5 A
Filter area: 42.13 m
Weight: approx. 1,440 kg
Noise level according to EN 23744: 74 dB (A)
LxWxH: 4,300 x 1,120 x 2,420 mm

Required connections:
- Standard compressed air coupling NW 7 approx. 6 bar, compressed air serviced and cleaned
- 1 x 32 A CEE socket

with IP 54 frequency converter for NE 350, 11 kW with differential pressure sensor
with fan and damper control
with duct components for recirculation/exhaust air with motorized multi-leaf damper
