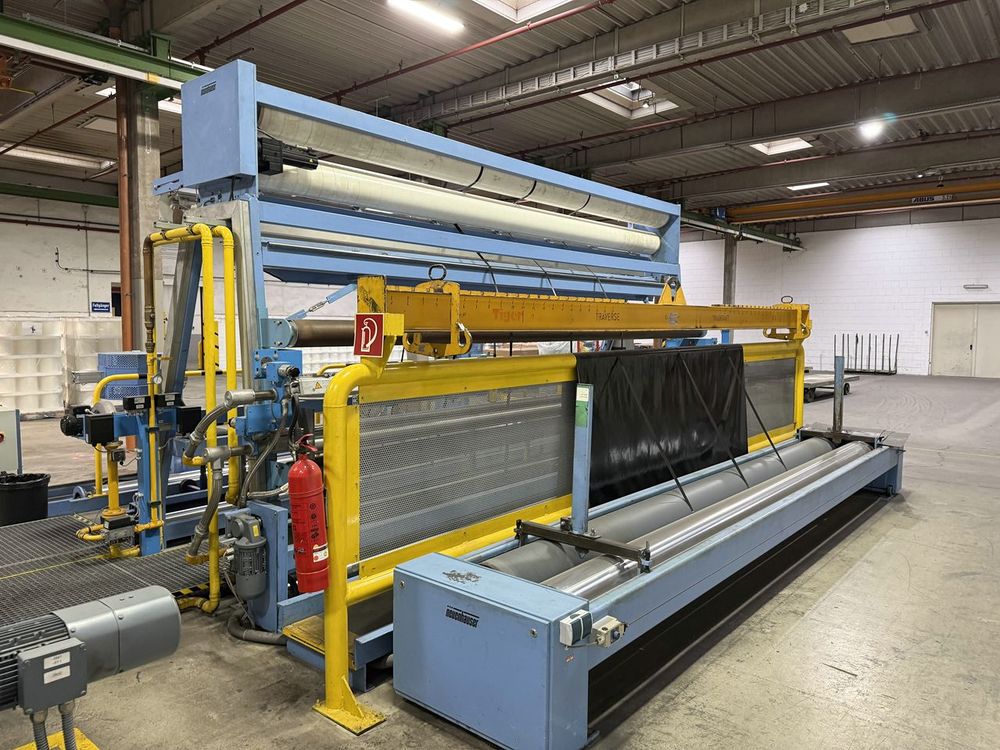

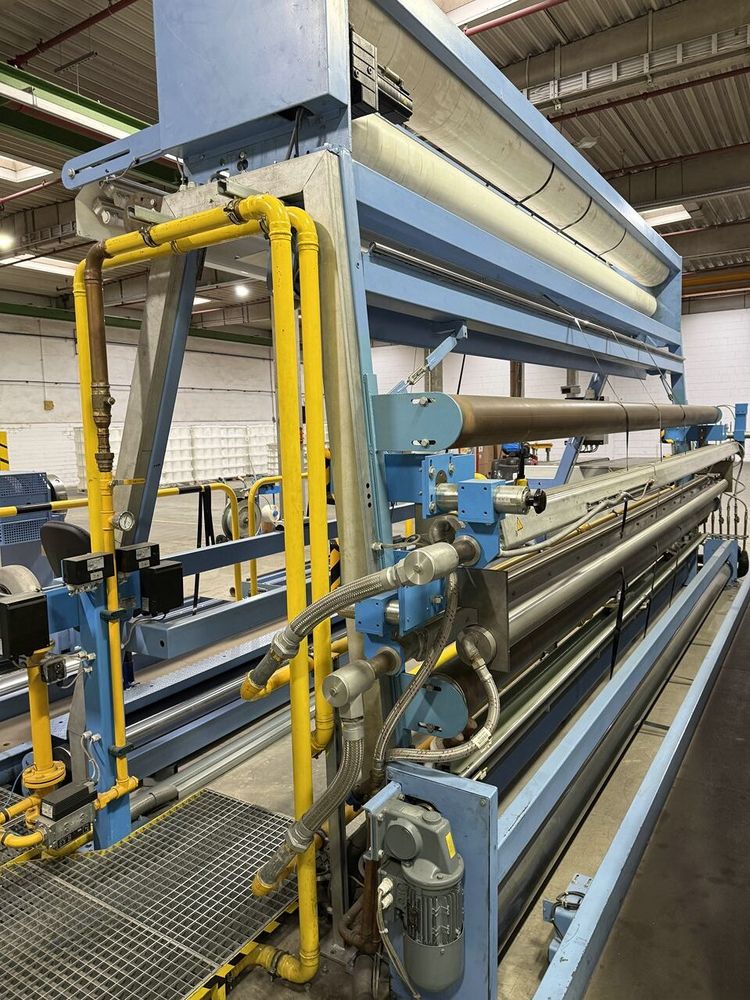

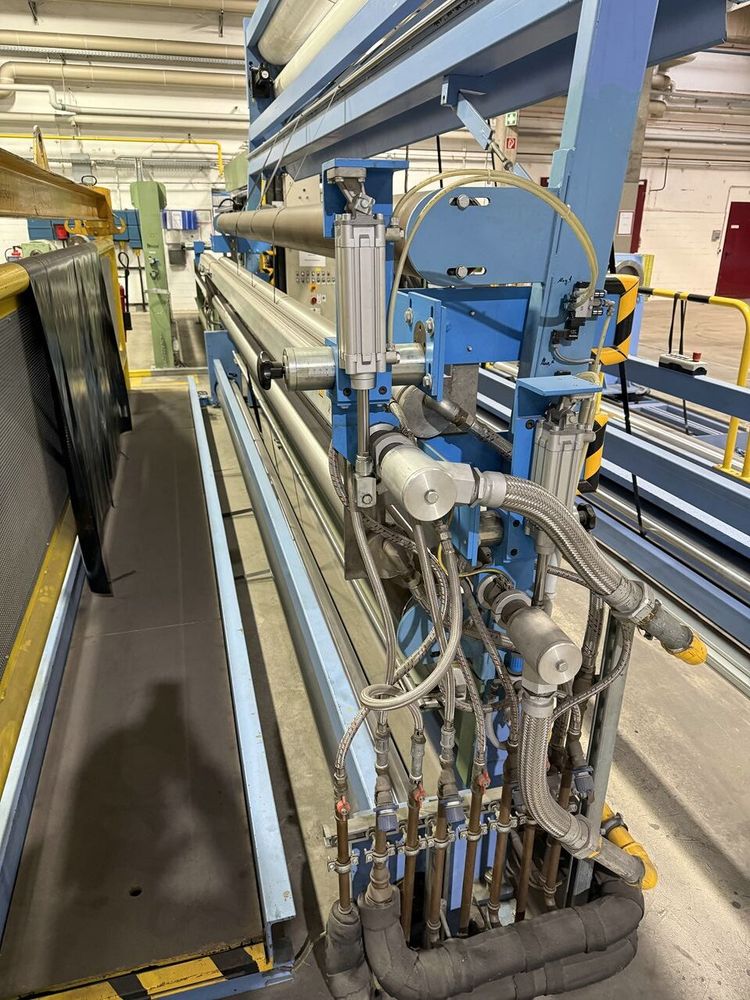

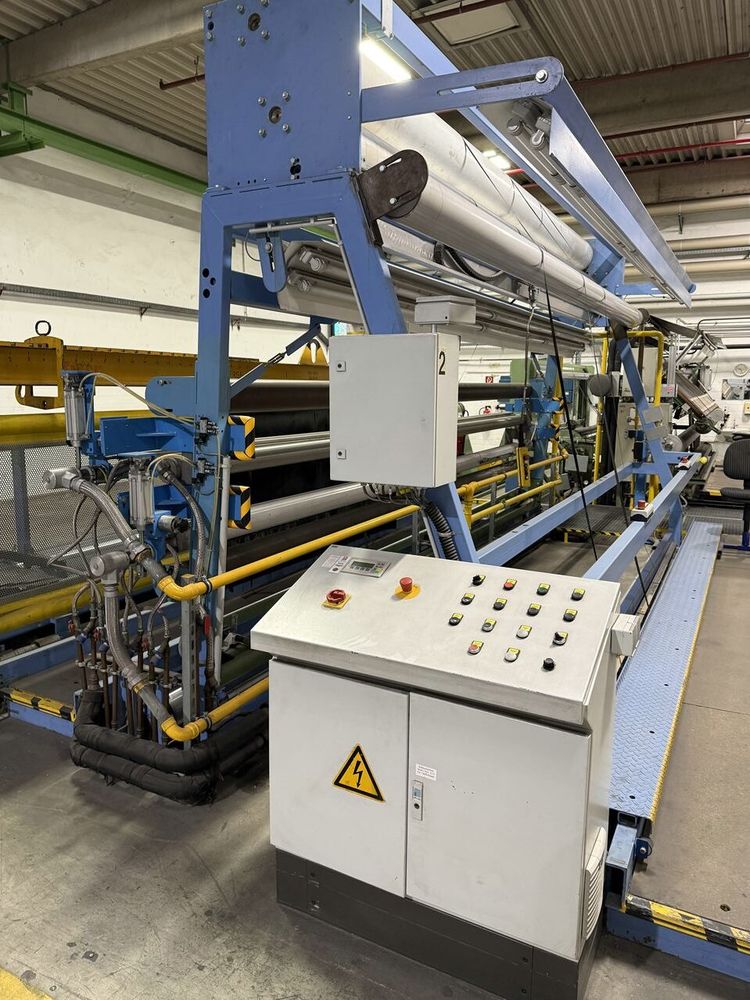

Neuenhauser rerolling/inspection machine

From roll to roll, width adjustable from 100 cm up to 540 cm
Let off unit type ARL / 5400-1800, max width 540 cm, max roll Ø 180 cm

pneumatic braking system for tension adjustment
fabric width adjustment by motor driven spindles
pneumatic take up chucks
inspection surface with the possibility to inspect the fabrics at the front and rear side
driven feeder roller system with the capability to work forward and backwards
gas singing system (fired on natural gas, make Schmitt Germany, year 2011)
Neuenhauser batcher with edge-to-edge control (type AW1AX 1733L / 5400KN)
roller Ø 33 cm, with curled deflection roller
