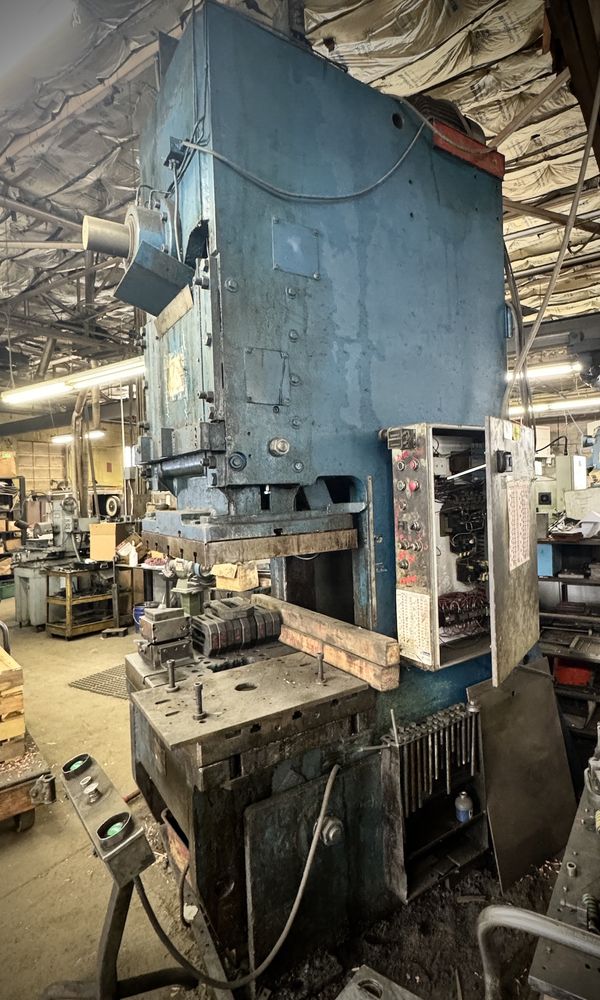

Niagara E110 110 ton

Nominal power: 110 ton
Stroke: 8"
Speed: 40 spm
Slide adjustment: 5" motorized
Niagara air clutch & brake
Niagara relay press control
Cieco 1100r6 press control (available for reconditioned price)
Six point square gibbing
Laminated nonmetallic ways
Wide box-type slide
Rugged connection
Heat-treated ball screw
Power slide adjustment
Self contained adjustable air counterbalance
Low inertia steel gearing
Shut height to bed: 21" SDAU
Bed area: 42" x 27" (rl x fb)
Slide area: 34" x 23.5" (rl x fb) t-slotted
Bolster plate: 4" h x 42" rl x 27" fb (t-slotted)
Distance between uprights: 22.5"
Distance floor to bed: 34"
Main motor: 10 HP 1750 rpm 480v-3-60
Approx. weight: 31,500 lbs.
Approx. dimensions: 153" h x 51" rl x 95" fb
