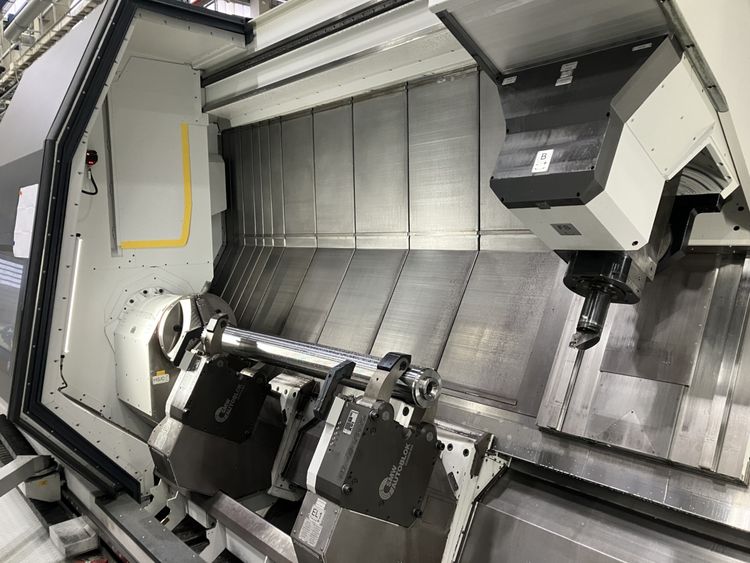

Niles Siemens Sinumerik 840D sl 3000 rpm N30MC-4500 4 Axis

X-axis travel: -15 to +725 mm
Y-axis travel: -245 to +4756 mm
Vertical travel Y-axis: -250 to +250 mm
C-axis smallest increment: ±0.001°
B-axis swivel range: -105° to +95°
Control: Siemens Sinumerik 840D sl
Turning diameter: 820 mm
Turning length: 4500 mm
Swing diameter over cross slide: 780 mm
Swing diameter over bed: 820 mm
Maximum center distance: 4500 mm
Working height: 1375 mm
Main spindle speed: 3000 rpm
Main spindle torque: 3135 Nm
Spindle head: DIN 55026 Form A15
Milling spindle power (40/100%): 36.5 / 29.8 kW
Milling spindle torque (40/100%): 328 / 261 Nm up to 1110 rpm
Milling spindle max speed: 5000 rpm
C8 tool system
Tool magazine capacity: 144 positions
SR5 steady rest with eccentric fine adjustment 45–310 mm
Tailstock quill diameter: 180 mm
Tailstock quill stroke: 170 mm
Tailstock quill force: 5–28 kN
Tailstock quill fine adjustment: ±0.15 mm
Coolant tank capacity: 990 l
Workpiece measurement system MC Renishaw
Gear hobbing software
Operating hours: 16085 h
Main spindle hours: 616 h
Milling spindle hours: 369 h
Used condition
