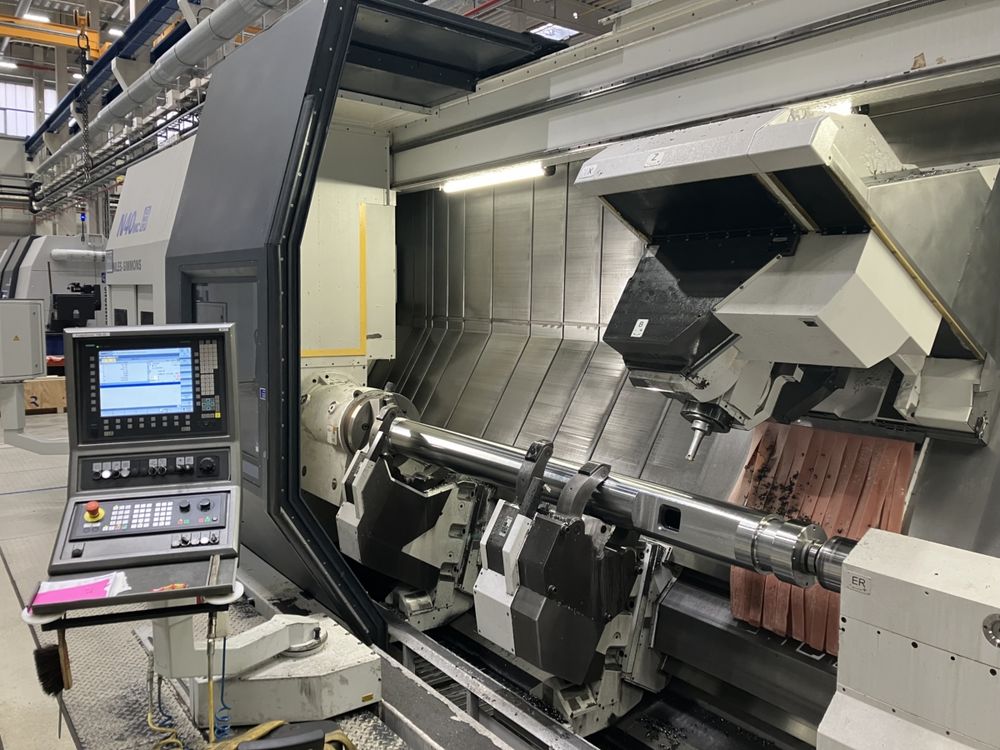

Niles Siemens 840 D sl 1750 rpm N40MC-6000 3 Axis

X axis travel: +850 / -25 mm
Z axis travel: 6820 mm
C axis positioning increment: ±0.001°
Control: Siemens 840 D sl
Turning diameter: 820 mm
Turning length: 6000 mm
Spindle bore: 160 mm
Spindle head: DIN 55026 A15
Spindle speed range I: 10 – 501 rpm
Spindle speed range II: 10 – 1750 rpm
Spindle power: 78 / 87 kW
Spindle torque I: 8000 Nm
Spindle torque II: 2308 Nm
C axis speed: 0 – 50 rpm
C axis holding torque: 3000 Nm
C axis max torque: 3700 / 4430 Nm
Tool interface: HSK100 / C8
Tool magazine capacity: 2 magazines
Max tool diameter: 125 / 200 mm
Max tool length: 600 mm
Max tool weight: 25 kg
Steady rest range: 70 – 425 mm
Tailstock quill diameter: 180 mm
Tailstock stroke: 170 mm
Tailstock taper: MK6
Tailstock force: 5 – 30 kN
Total power: 155 kW
Machine weight: 65 t
Machine dimensions: 16350 x 3700 x 3850 mm
Collision monitoring system ACS 3-ARTIS
Chip conveyor
Coolant system 980 L tank
