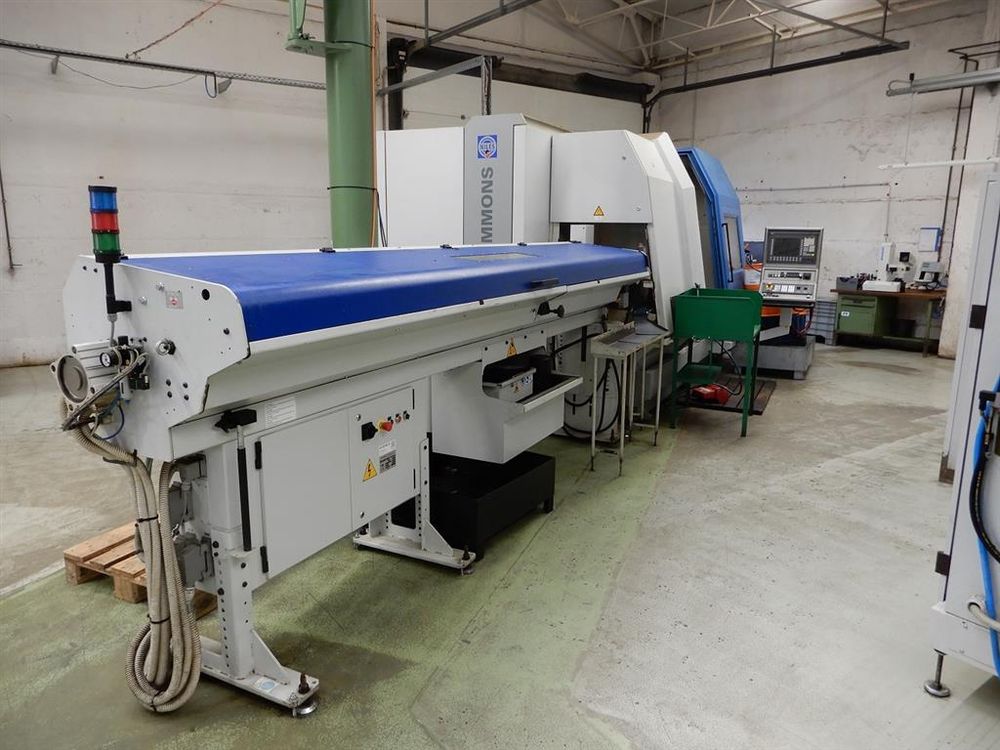

Niles Sinumerik SL840D Variable Speed N20 -2x1000 3 Axis

NILES N20 -2x1000
2010

CNC control: Sinumerik SL840D
Control software: NCU 2.6, system 1.4, Store Turn 6.4
Spindle passage: 92 mm
Turning length: 1000 mm
Z-axis travel min.: 404 mm
Z-axis travel max.: 1130 mm
X-axis travel min.: 15 mm
X-axis travel max.: 335 mm
Max. spindle torque: 2500 Nm
Tool turret: 12 axial tools
Operating pressure: 6.0 bar
Rapid traverse: 20 m/min
Power requirement: 88 kVA
Machine dimensions (approx.): 4.45 m (length)
Bar loader dimensions (L x W x H): 5.7 x 2.65 x 2.4 m

C-axis: Yes, orientable
Driven tools: No
Chuck: KNCS 260-72, SMW Autoblok
Clamping cylinder: VNK-200/86, SMW Autoblok
Measuring system: Heidenhain
Tool turret: Sauter VDI50, electric drive

Bar loader: Master 80HF, type 33LL
Min. bar diameter: 20 mm
Max. bar diameter: 80 mm
Min. workpiece length: 33–1000 mm (varies by bar Ø)
Max. workpiece length:
– Ø 33: 3300 mm
– Ø 38: 3800 mm
– Ø 43: 4300 mm
Feed speed (adjustable): 150 mm/sec
Return speed (adjustable): 950 mm/sec
Max. offcut:
– Ø 8–65 mm = 400 mm
– Ø 66–80 mm = 250 mm
Min. remnant: 120 mm

Chip conveyor: Richter SP 450/63
Discharge height: 1000 mm
Discharge side: Right

Included accessories:
Various VDI 50 tool holders
SK50 to VDI 50 adapter
Hainbuch Toplus Kombi Axial-pull chuck GR100
Various sleeves and guide jaws for Ø 20–75 mm
