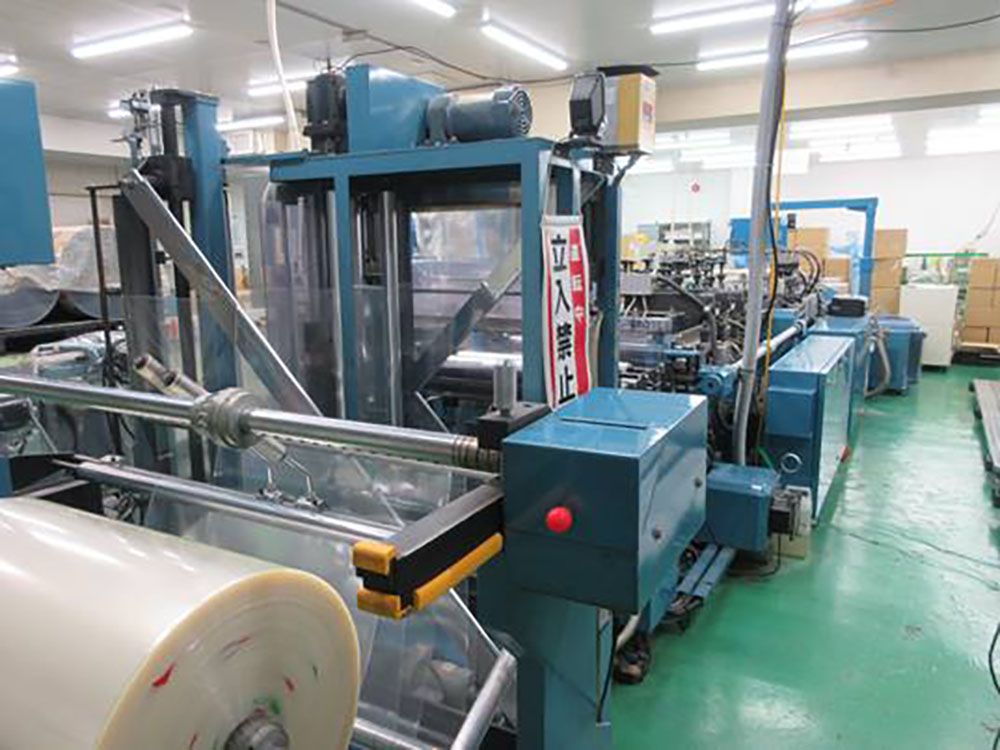

Nishibe HSE-600-SS Bag making machine

Pouch Size Range Width: 75mm to 600mm, Length: 50mm to 500mm
Speed 40-200 cycles / min.
Web Width 400mm～1250mm　Original paper diameter／MAX.800mmΦ
Production Line Bag making chamfering/1 to 4 chamfering
Bag making speed: 40-200 revolutions per minute
Bag making speed may be restricted by the type of base material, cut dimensions, etc.
Raw paper width / 400mm-1250mm
Raw paper diameter / MAX.800mmΦ
Bag making chamfering / 1-4 chamfering
Finished bag making dimensions / Width 75mm-600mm, length 50mm-500mm Machine weight / 6500kg

Machine configuration :
Raw paper hooking section
Forced feed method for base material (inverter control)
Mitsuhashi LPC device installed Powder brake device (automatic control)
Monitor screen / Data input on the monitor screen using keyboard
ON/OFF switching of each device, numerical values ​​of each device
Settings, dimensions, sealing/feed ratio, speed setting
ON/OFF switching of alarms
Raw paper feed mechanism / 2 Mitsubishi AC servos, computer controlled
Cutting dimension detection sensor with reflective type (Sick) Thermostat (NACS *NISHIBE ASSOCIATION CONTROL SYSTEM) 16 units
CRT display multi-drop, communication type temperature control system, upper and lower limit temperature alarm
Seal upper and lower pressure mechanism/1 Mitsubishi AC servo, bell lever, toggle composite pressure method
Seal unit lift device when machine is stopped 1 unit

Main power source:
Electricity/AC200V three-phase motor load 13.8kw AC200V single-phase load resistance 28kw
Cooling water/10-15 liters/per minute
