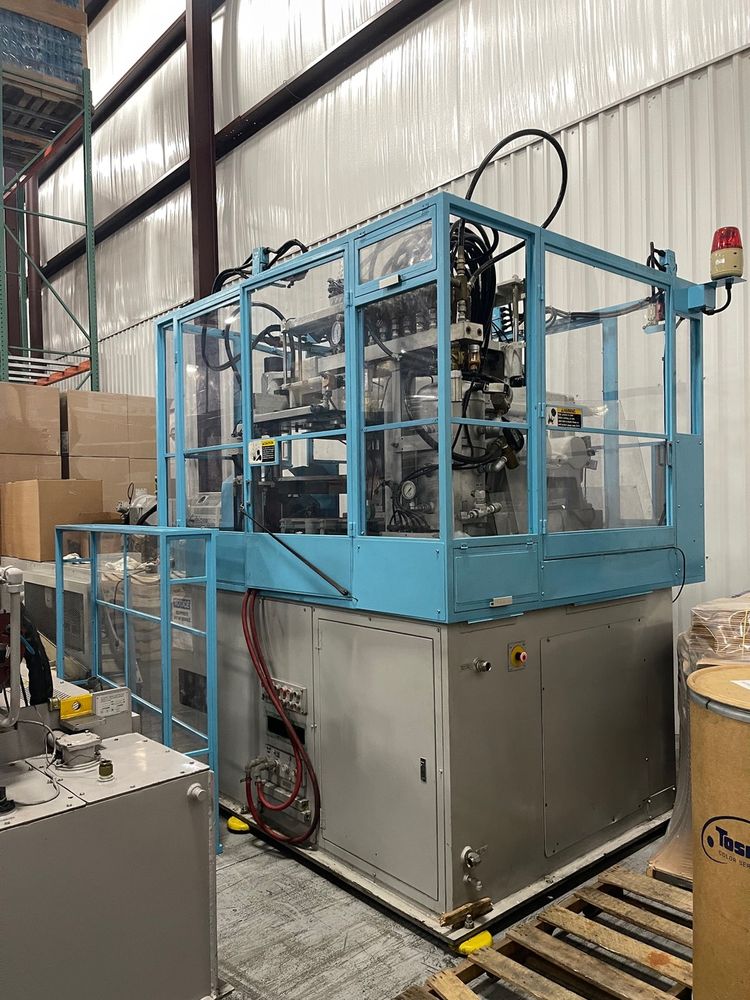

Nissei ASB 70 DPH PET One Step Injection Stretch Blow Molding Machine

Theoretical injection capacity- 366 cubic centimeters
Injection clamping force- 687 kN
Blow clamping force- 242 kN
Driving power (rated)- 33 kW
Heater capacity- 38.5 kW
Maximum blow air pressure- 508 psi
Machine size (length x width x height)- 5,643 mm x 1,896 mm x 3,208 mm
Machine weight- 9,000 kilograms
Max. neck finish (mm)- 2 cavities- 110– 4 cavities- 95– 6 cavities- 60– 12 cavities- 18
Max. body diameter (mm)- 2 cavities- 153– 4 cavities- 120– 6 cavities- 79– 12 cavities- 37
Max. height (mm)- 2 cavities- 350– 4 cavities- 350– 6 cavities- 350– 12 cavities- 350
Max. capacity (liters)- 2 cavities- 4.5– 4 cavities- 3– 6 cavities- 1– 12 cavities- .1
Offer includes an AEC Desicant Dryer and Hopper
Condition- Good- servo motor and a few other parts needs changing
