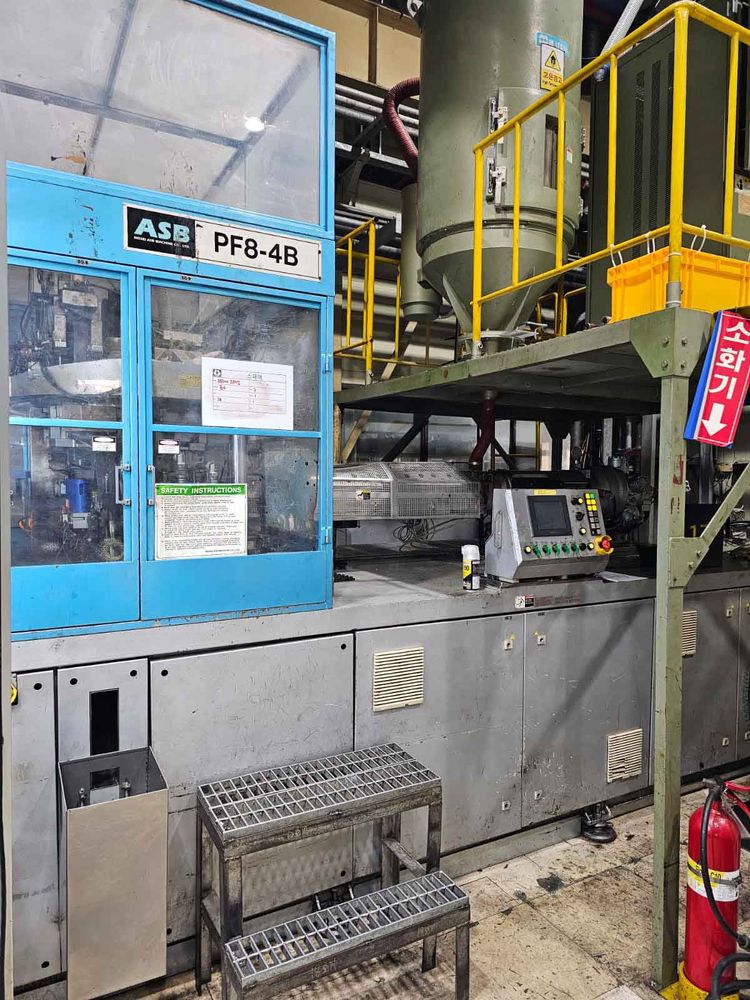

Nissei PF8-4B
Ref :
2730473-6-GO
Condition :
Used
Manufacturer :
Nissei
Model :
PF8-4B
Year(s) :
2009
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
With chiller & dehumidifying dryer
Blow Clamping Force 242 kN
Body Diameter max. 89 mm
Capacity max. 1,5 l
Cavity Number 8
Dimensions (long x wide x high) 5.985 x 2.100 x 2.955 mm
Injection Clamping force 460 kN
Injection volume 515 cm³
Neck Diameter max. 30 (36) mm
Oil tank capacity 450 l
Power: installed max 34 + 39.9 kW
Screw diameter 64 mm
Shot weight max 55 g
Support Ring Diameter max. 34 (42) mm
Thread Diameter max. 32 (38) mm
Weight 10.500 kg
