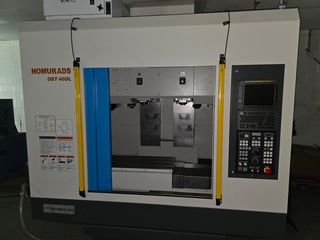

Nomura DST-40DI1900 3 Axis

X-Axis Travel 520 mm (20.5")
Y-Axis Travel 400 mm (15.75")
Z-Axis Travel 400 mm (15.75")
Control FANUC Series 21i‑MODEL B Plus
Spindle Taper BBT30
Spindle Speed 15,000 RPM
Spindle Power 10 HP (7.5 kW)
Rapid Traverse 60 m/min (2,362 ipm)
Table Size 750 × 400 mm (29.5" × 15.75")
Max Table Load 300 kg (660 lbs)
Tool Change 24-tool arm-type ATC
Chip-to-Chip Time 1.8 sec
Footprint 71.7" × 89.8"
Weight 9,900 lb (4,500 kg)
Power Capacity 30 kVA
Control Voltage DC 24V
Safety / Enclosure Full guard, sealed side panels
