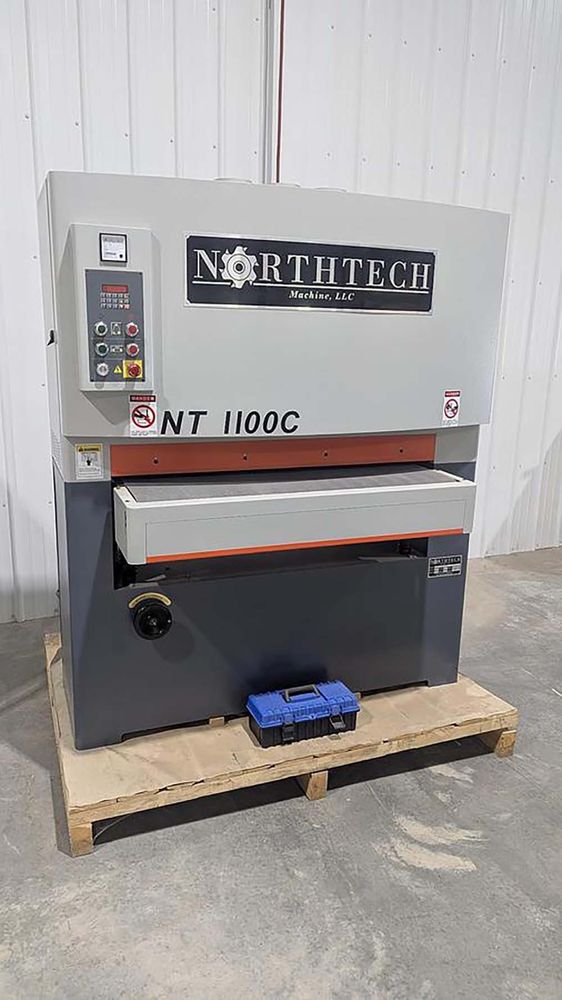

Northtech NT-1100C

Single Head Wide Belt Sander
Condition Used
MACHINE HP 27-1/4 HP
MAIN MOTOR HP 25 HP
VOLTAGE, FREQUENCY 230/460 Volt 60Hz
PHASE 3 Phase
AMP REQUIREMENT 72/36 Amps
CONFIGURATION Combination
1st HEAD 15 HP 4'' Fluted Drum with Platen
FEED HP 2 HP
FEED SYSTEM 43-1/4'' Feed Mat
DRIVE SYSTEM Gear Box / Variable Speed Pulley
FEED SPEED RANGE 16-48 FPM
VARIABLE FEED SPEED Variable Speed pulley
ELEVATION HP 1/4 HP
ELEVATION STYLE Digital Readout
ELEVATION SYSTEM 4 Post Jack Screw
DUAL VOLTAGE MOTORS 230/460 Volt
CONTROL VOLTAGE 220 Volt
PASS-LINE 30-3/4'' - 36-7/16''
MIN. WORKING LENGTH 11-1/2''
MAX. WORKING WIDTH 43''
MIN. WORKING THICKNESS .155''
MAX. WORKING THICKNESS 6
SANDPAPER SIZE 43-1/4'' x 75''
PLATEN SPECIFICATIONS 1-3/4'' x 44''
DRUM SPECIFICATIONS 4'' Spiral Fluted 65 Durometer
1st BELT SPEED 2285 FPM
OSCILLATION STYLE Electric Photo Eye
OSCILLATION TRAVEL 3/4''
CLEANING SYSTEM Jet Blow Off on Photo Eye
TRACKING STYLE Pneumatic
TENSION STYLE Pneumatic
DUST PORT SIZE OUTLET (4) 5'' Ports
DIGITAL DISPLAY Elevation
CONVEYOR 43-1/4'' Feed Mat
IDLE ROLLERS (2)
PRESSURE SHOES (2)
HOLD DOWN STYLE (2) Rubber Rollers / (2) Pressure Shoes
FLR INCLUDED Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT 3/8'' Line @ 90 PSI
EMERGENCY STOP Push Button
GUARDING Full Enclosure
BRAKE SYSTEM Dual Pneumatic Caliper
FRAME CONSTRUCTION 1/4'' Steel
TABLE CONSTRUCTION MATERIAL Steel
DECIBEL RATING 78 dB
NET WEIGHT 2390 Lbs.
GROSS WEIGHT 2687 Lbs.
