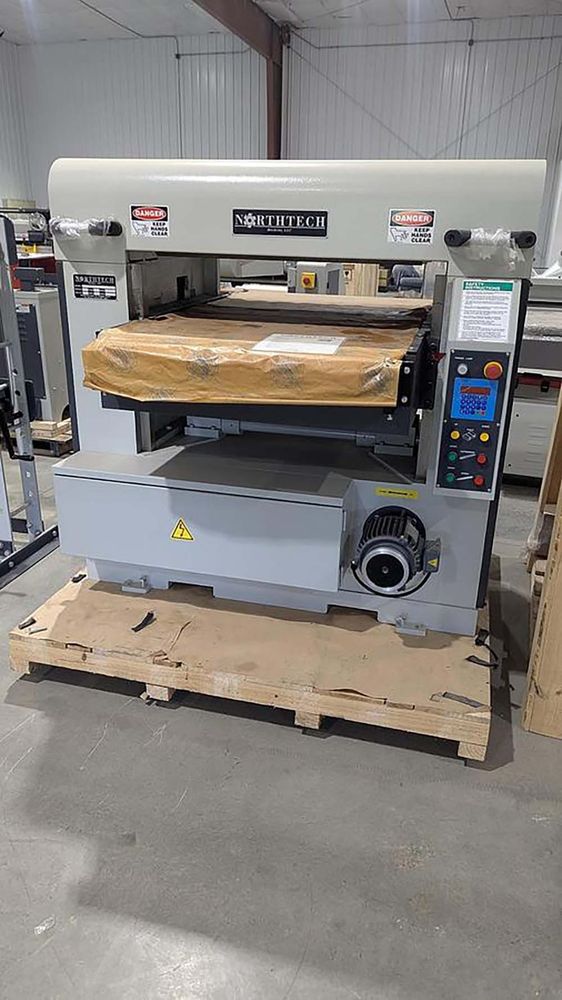

Northtech NT-850HCVS

Condition Used
TOP HEAD HP 30 HP
VOLTAGE, FREQUENCY 230/460 Volt 60HZ
PHASE 3 Phase
AMP REQUIREMENT 30/60 Amps
FEED HP 2 HP
FEED SYSTEM (4) Top Powered Rollers (4) Bottom Powered Rollers
FEED SPEED RANGE 10-40 FPM
VARIABLE FEED SPEED Manual Clutch Adjustment
ELEVATION HP 2 HP
ELEVATION STYLE PHE 727M Digital Controller
ELEVATION SYSTEM (2) Post Jack Screw
TOTAL MACHINE HP 34 HP
APPROVED ELECTRICAL PARTS CE Approved Components
DUAL VOLTAGE MOTORS 230/460 Volt
CONTROL VOLTAGE 110 Volt
PROGRAMABLE Elevation
PASS-LINE 38-1/2'' Down Position 45-1/4'' Up Position
MIN. WORKING LENGTH 14''
MAX. WORKING WIDTH 33-1/4''
MIN. WORKING THICKNESS .380''
MAX. WORKING THICKNESS 7.315''
CUTTER HEAD RPM 3600 RPM
HEAD TYPE Spiral Helical Cutter Head
CUTTER HEAD DIMENSIONS 5-1/2'' x 33-1/2''
CUTTER HEAD MATERIAL Alloy Steel
ROWS OF CUTTERS 8 Rows 32 Inserts Per Row
NO. OF INSERTS 256 Inserts
DUST PORT SIZE OUTLET (2) 6'' Ports
DIGITAL DISPLAY Elevation Controller
POWERED ROLLERS (4) Top Powered Rollers (4) Bottom Powered Rollers
HOLD DOWN STYLE (17) Chip Breakers (1) Pressure Plate
REAR E STOP Push Button
GUARDING Full Enclosure
DECIBEL RATING 70 dB
NET WEIGHT 4950 Lbs.
GROSS WEIGHT 5388 Lbs.
MACHINE DIMENSIONS 547'' x 64-1/2'' x61-1/2''
PACKAGING DIMENSIONS 63'' x 61'' x 67''
