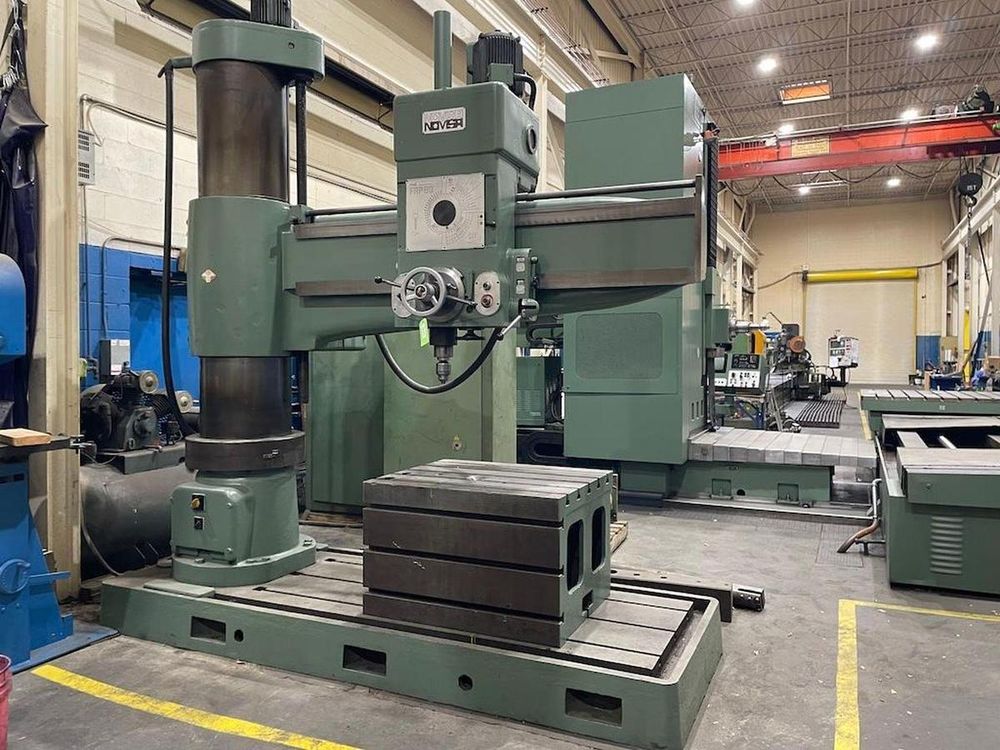

Novisa FRP-80 1400 rpm

Column diameter: 19.5 in
Maximum distance between spindle center and column center: 86.75 in
Minimum distance between spindle center and column center: 23.75 in
Maximum distance between spindle center and column face: 77 in
Minimum distance between spindle center and column face: 14 in
Column height: 19.5 in
Maximum height from spindle head to base: 143.25 in
Base floor space: 123 x 43.5 in
Base height: 10 in
Spindle head longitudinal travel: 61.5 in
Vertical arm travel: 46 in
Table top size: 39.25 x 31.5 in
Table side size: 39.25 x 24.75 in
Spindle feed range: 0.2 - 0.5 mm
Spindle speed range: 10 - 1400 rpm
Main motor power: 10 hp
Arm elevating motor power: 5.5 hp
Input voltage: 220 / 380 V
Overall dimensions: 123 x 43.5 x 143.25 in
Adjustable headstock
T-slot base: 34.5 x 84 in
Dual face T-slot table
Hydraulic head clamping
