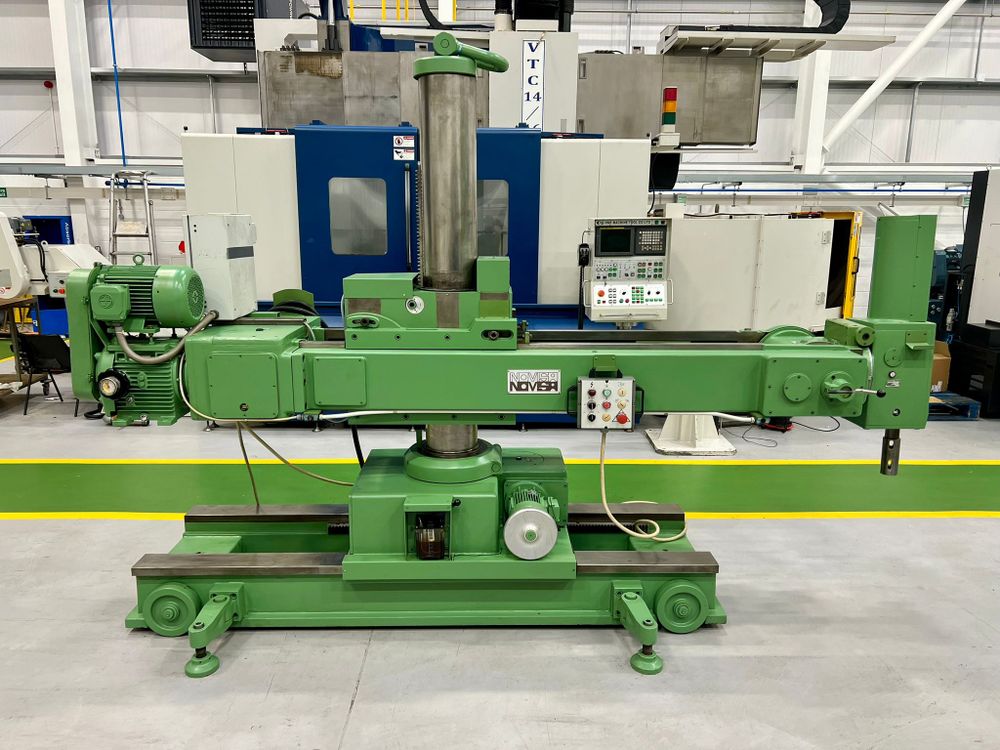

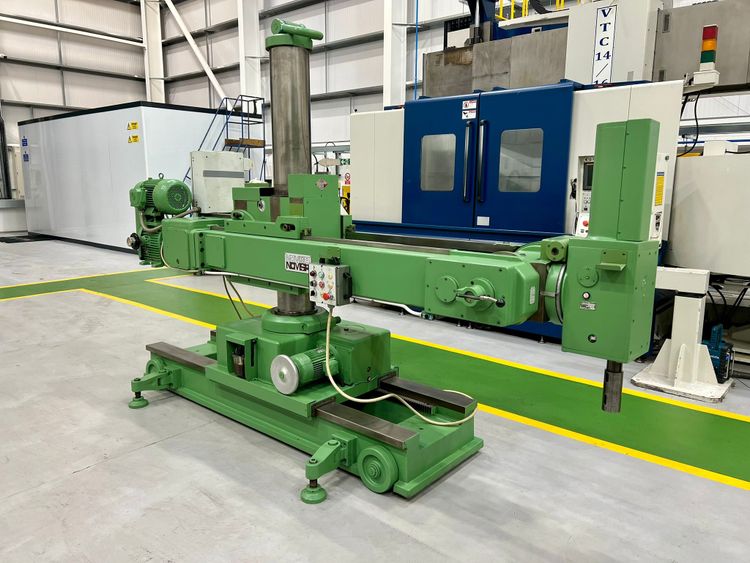

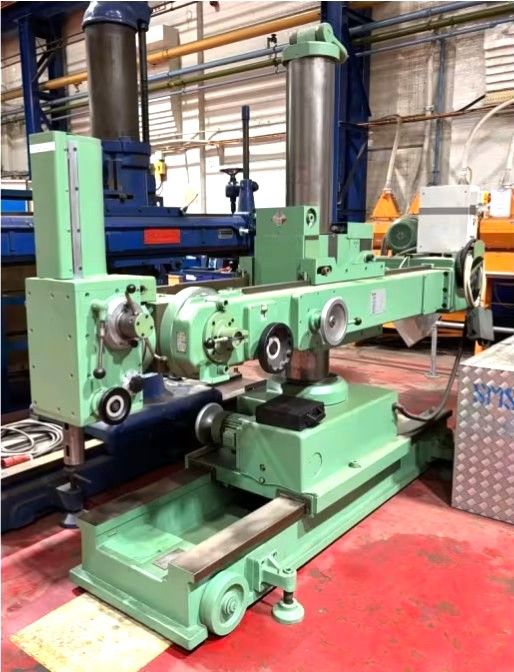

Novisa TUG 60S 800 rpm

(Rebuilt 2011)

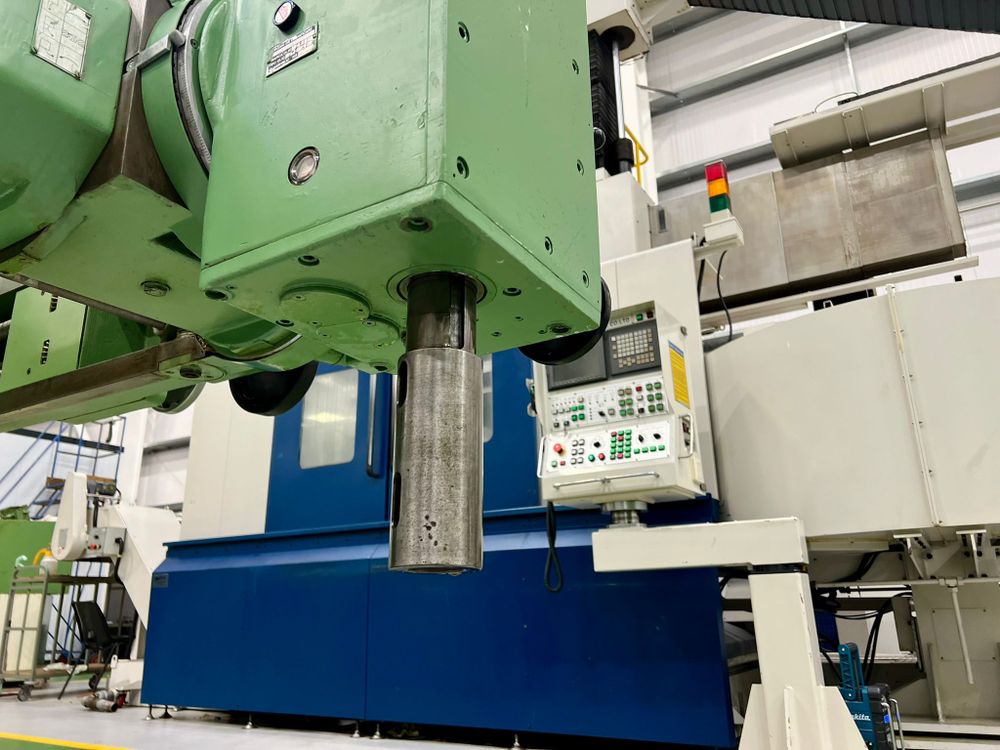

Spindle diameter: 60 mm
Spindle taper: MT5
Drilling capacity in steel (TS 600 MPa): 60 mm
Drilling capacity in cast iron (TS 250 MPa): 70 mm
Tapping capacity in steel (TS 600 MPa): 60 mm
Spindle travel: 350 mm
Spindle speeds: 30 / 45 / 70 / 100 / 155 / 240 / 340 / 515 / 800 rpm
Feeds: 0.05 / 0.1 / 0.2 / 0.3 mm/rev
Min distance between spindle axis and column axis: 1,000 mm
Max distance between spindle axis and column axis: 2,120 mm
Min distance between spindle nose and floor: 0 mm
Max distance between spindle nose and floor: 1,940 mm
Min distance from spindle axis to floor (horizontal spindle): 90 mm
Max distance from spindle axis to floor (horizontal spindle): 2,750 mm
Vertical travel of arm: 1,030 mm
Arm downward tilt: 21°
Arm upward tilt: 9°

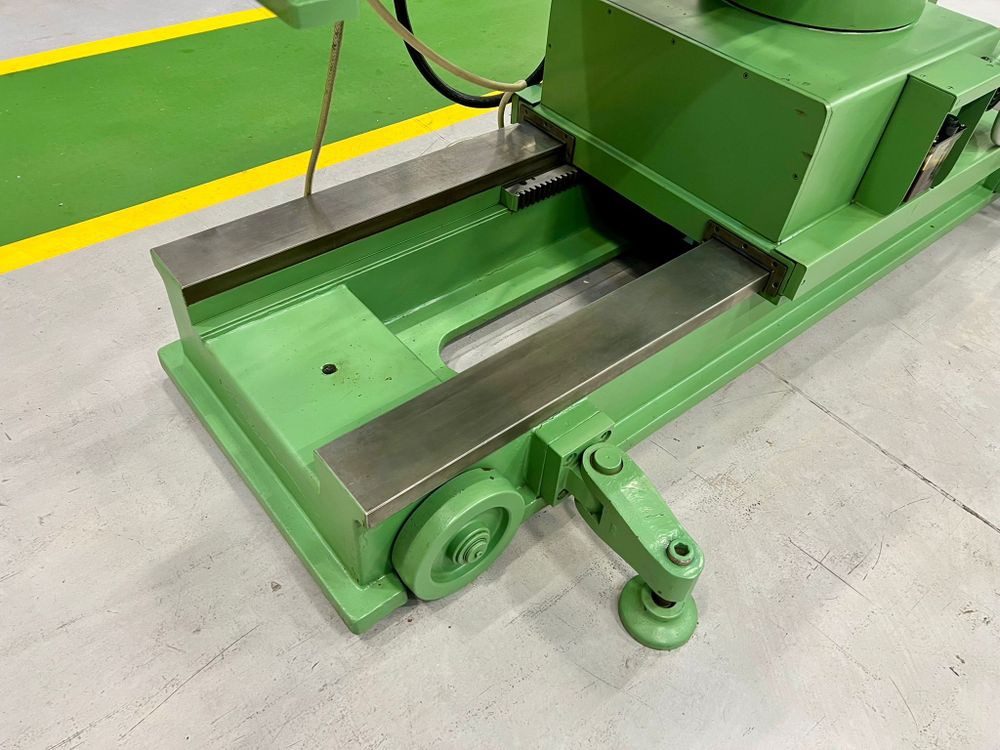

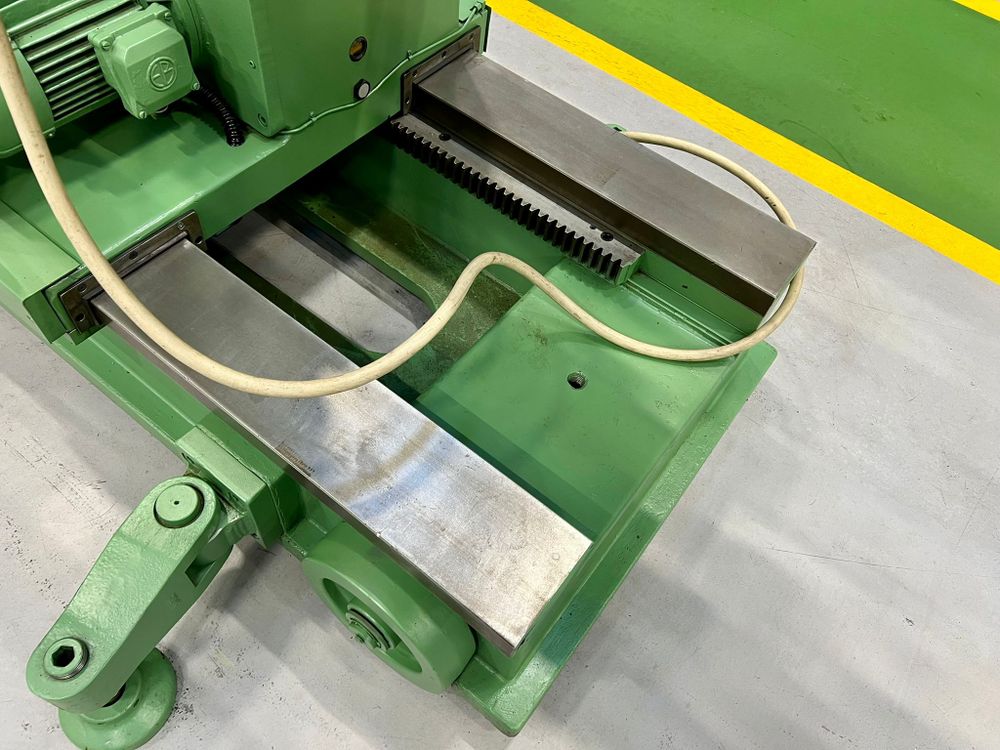

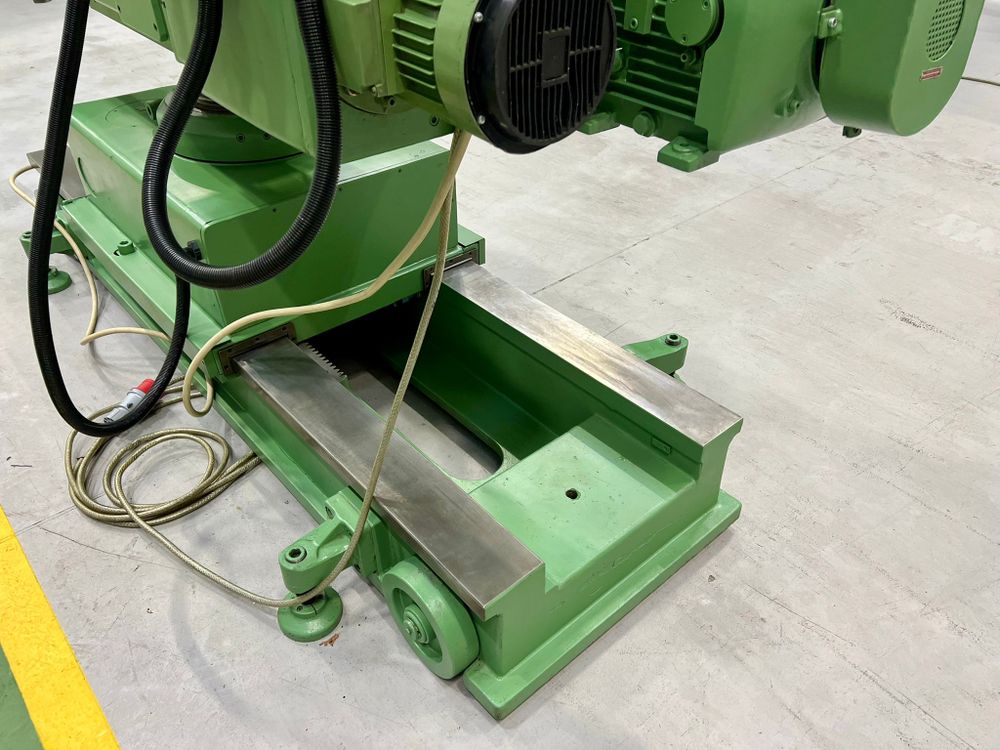

Column travel on bed: 1,500 mm
Bed size: 780 × 2,570 mm
Bed size with feet: 1,200 × 2,570 mm

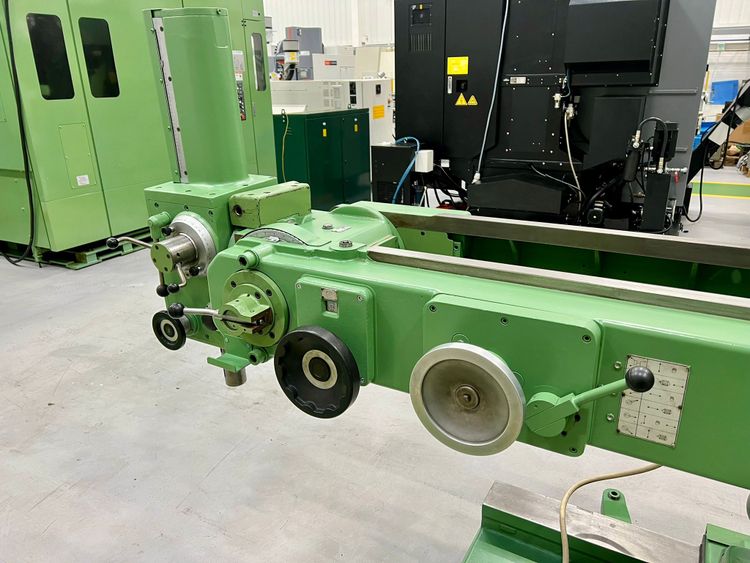

Head tilt: 180° (90° up / 90° down)
Head rotation: 360°
Column rotation: 360°
Column diameter: 240 mm
Arm horizontal rapid traverse: 1,650 mm/min
Arm vertical rapid traverse: 1,500 mm/min
Column travel on bed rapid traverse: 1,650 mm/min

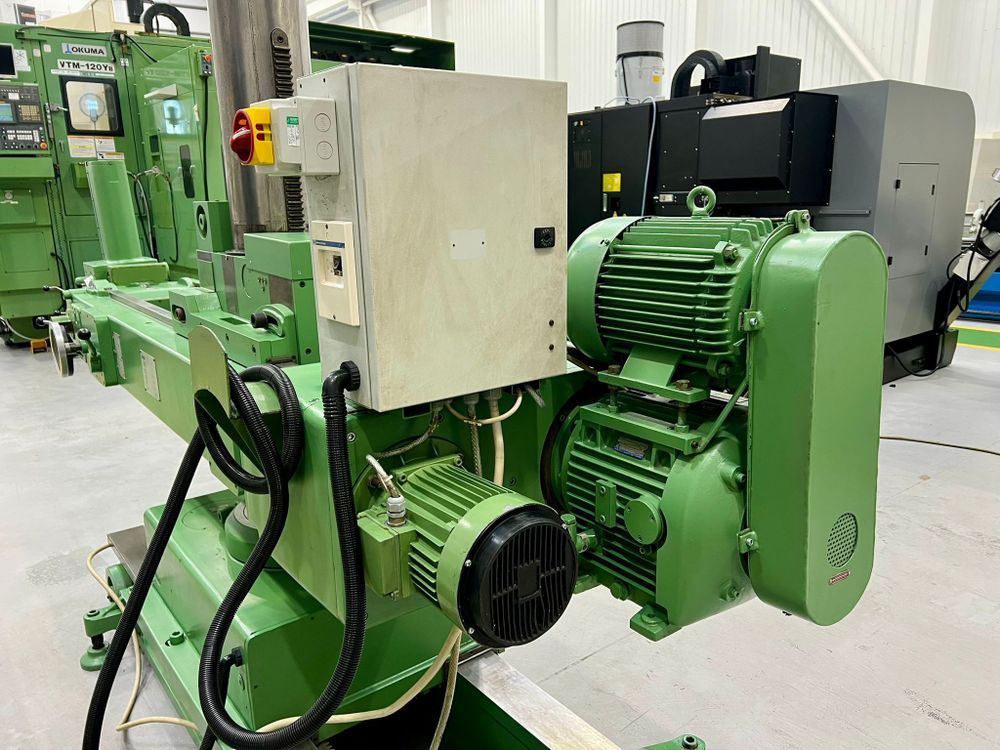

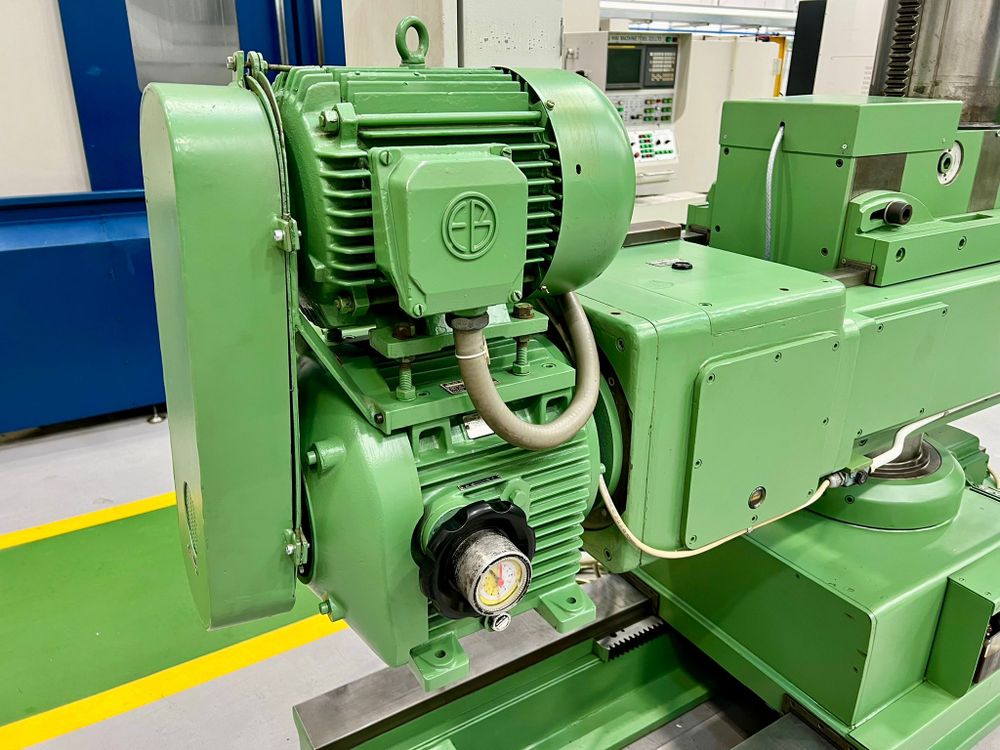

Spindle motor power: 5.5 kW
Arm traverse motor power: 2.2 kW
Machine dimensions (L × W × H): 2,570 × 780 × 2,520 mm
Approximate weight: 4,800 kg
