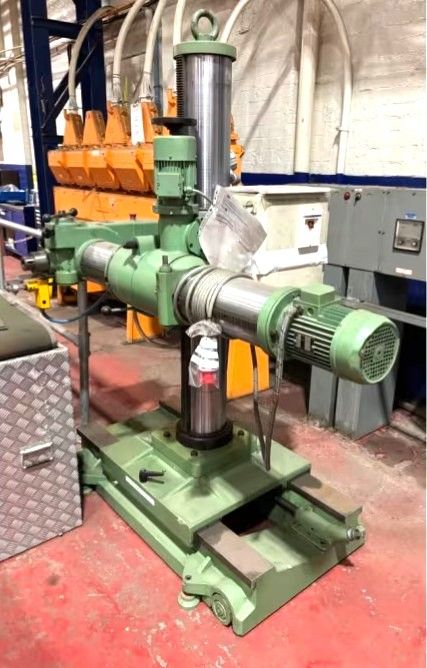

Novisa TUG 40S 2400 rpm

Drilling capacity in steel (TS 600 MPa): 32 mm
Drilling capacity in cast iron (TS 250 MPa): 40 mm
Spindle travel: 190 mm
Spindle diameter: 60 mm
Spindle taper: MT4
Spindle speeds: 24 / 48 / 75 / 150 / 380 / 760 / 1200 / 2400 rpm
Feed range: 0.09 / 0.12 / 0.25 mm/rev
Min distance between spindle axis and column axis: 410 mm
Max distance between spindle axis and column axis: 1030 mm
Min distance between spindle nose and floor: 100 mm
Max distance between spindle nose and floor: 1300 mm
Min distance from spindle axis to floor (horizontal spindle): 560 mm
Max distance from spindle axis to floor (horizontal spindle): 1570 mm
Vertical travel of arm: 1040 mm
Column travel on bed: 600 mm
Bed size: 840 × 1400 mm
Head tilt: 180° (90° up / 90° down)
Head rotation: 360°
Column rotation: 360°
Column diameter: 190 mm
Arm vertical rapid traverse: 1650 mm/min
Machine height: 2000 mm
Machine dimensions (L × W × H): 2100 × 1000 × 1600 mm
Approximate weight: 1200 kg
