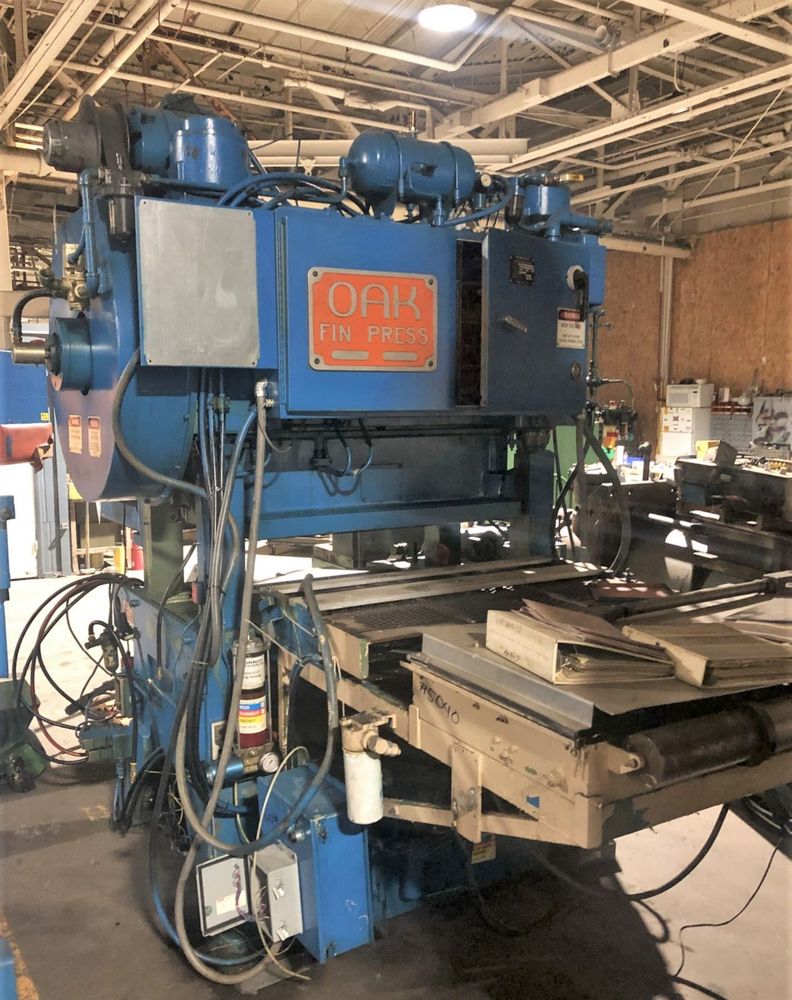

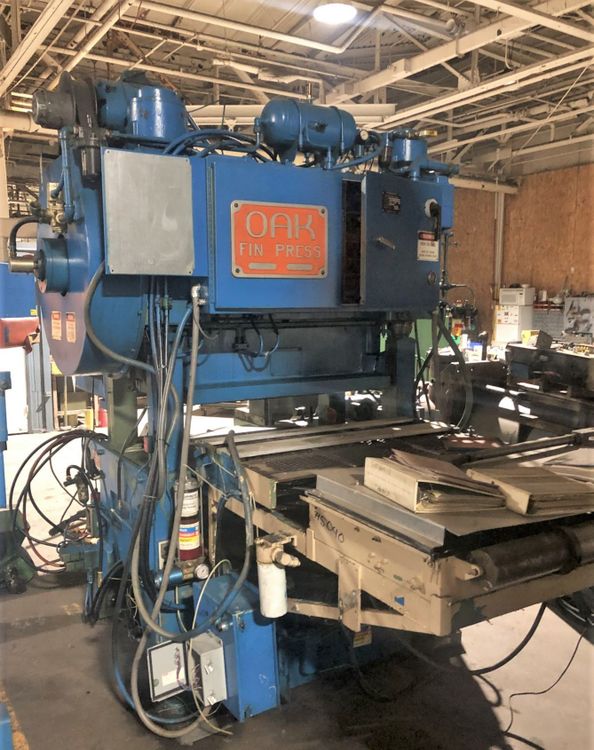

OAK FP-2-48-615 Press 60 ton

Oak FP-2-48-615 Press
Year: 1980

capacity 60 ton
STroke 1-1/2″
max. Shut height 9-12″ over 3-7/8″ bolster
bed area 48″ x 34″ (RL X FB)
speed 100 – 300 spm
ram area 48″ rl x 34″ fb
ram adjustment 4″
withdrawal travel 9″-13″ – hydraulic
bolster size 3-7/8″ x 48″ rl x 34″ fb
clutch air clutch and brake
electrics oak solid state controls – currently wired 440 Volt
overall dimensions 9′ 5″ high, 7′ rl, 4′ fb
approx. weight 25,000 lbs.

Equipped With
oak hydraulic trurad progression feeder 40″ wide Oak coil reel
60″ max. o.d., mdl. no. sru – M-j21, lubrication box, lace-up table
suction hood, 3-sided rotary fin stacker
Note all 4 crown withdrawal cylinders rebuilt by oak – jan. 2018
