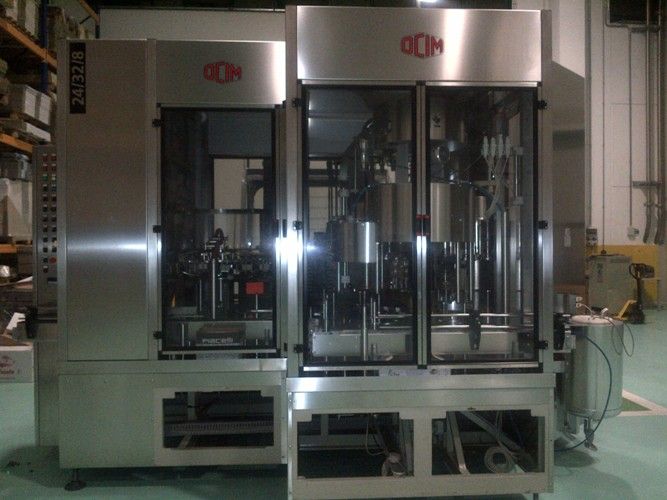

Ocim Automatic triblock for blowing, filling and capping

Automatic rotary blower model SPLENDOR/24P
with 24 clamps suitable for blowing the inside of
the bottles using sterile compressed air at a pressure of 3 bar,
Automatic rotary filler model Rapida
with 32 nozzles with automatic level of 0 mm.
14 (to be confirmed with sampling)
necessary to simultaneously vary the filling level in the bottles,
Automatic rotary capping machine model
Super-Ermetica with 8 quick-fit heads
capable of applying one type of aluminum cap complete with cap slide.
The capping machine is complete with peak-place system
for Bericap 32-24 pressure caps,
Photocell at the entrance to the machine
for self-adjusting speed,
Photocell at the entrance to the machine for “always full” bottles,
Automatic mechanical cap elevator with stainless steel belt for transporting the caps from the bottom to the Orientator.
Operating at a light vacuum, it has been modified so that it can also be used for PET bottles with a light inert gas pressure.
The machine will be equipped for the following container formats:
glass bottle 250cc, 500cc, 1000cc
PE bottle 500cc, 1000cc
