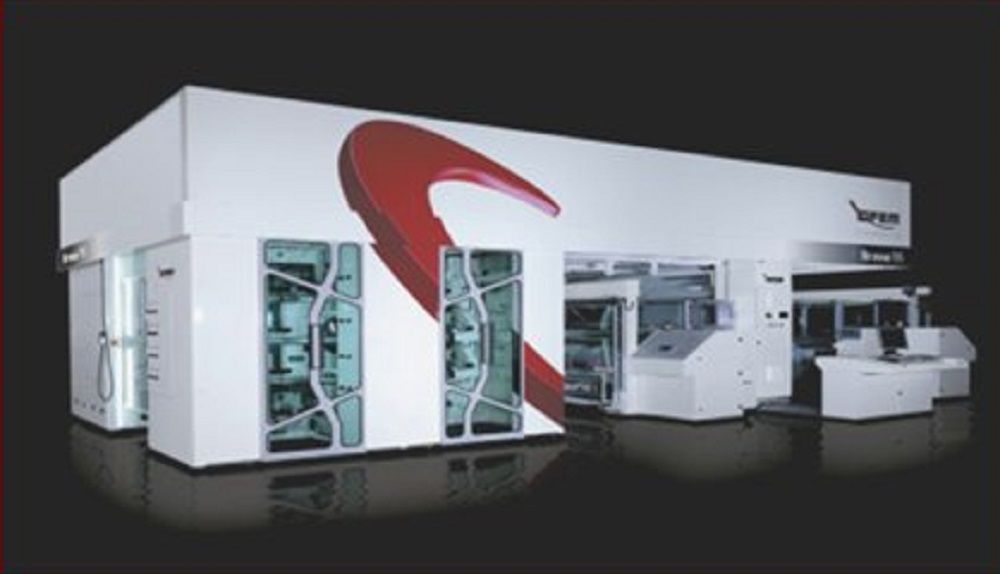

Ofem ARENA 8 1200 mm

Flexo printer
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1200
Min print repeat (mm) 330
Max print repeat (mm) 800
Unwinder type Automatic Turret
Max reel diameter unwinder (mm) 800
Rewinder type Automatic Turret
Max reel diameter rewinder (mm) 800
Drying 2 zones , four fans , Gas burner
Web guides 2 webguide system 1 before printing unit 1 before winder
Vyscosity control Gama Viscosity Control System VISG265VID
Inking system Closed chamber doctor blades
Anilox : 28 approx. 2x90 L/cm-vol. 20, 1x140 L/cm-vol. 16, 1x130 L/cm-vol. 11, 2x 180 L/cm-vol. 10,
1x200 L/cm-vol. 9,5, 1x200 L/cm-vol. 7, 1x280 L/cm-vol. 10, 2x280 L/cm-vol. 8, 2x 300 L/cm-vol. 7,
2x 320 L/cm-vol. 6, 2x360 L/cm-vol. 8, 1x360 L/cm-vol. 7, 2x 360 L/cm-vol. 6, 1x 420 L/cm-vol. 4,2,
5x 460 L/cm-vol. 4,5, 1x 480 L/cm-vol. 3,6, 1x 520 L/cm-vol. 4,5, 1x Apex L
Print Sleeves : 438 approx. repeats as follows: 340, 350, 360, 370, 380, 390, 400, 410, 420, 425,
430, 440, 450,460, 470, 480, 490, 500, 510, 520, 530, 535, 540, 550, 560, 620, 625, 630, 640, 660, 670, 680, 710
Print cylinders 2 sets of carriers
