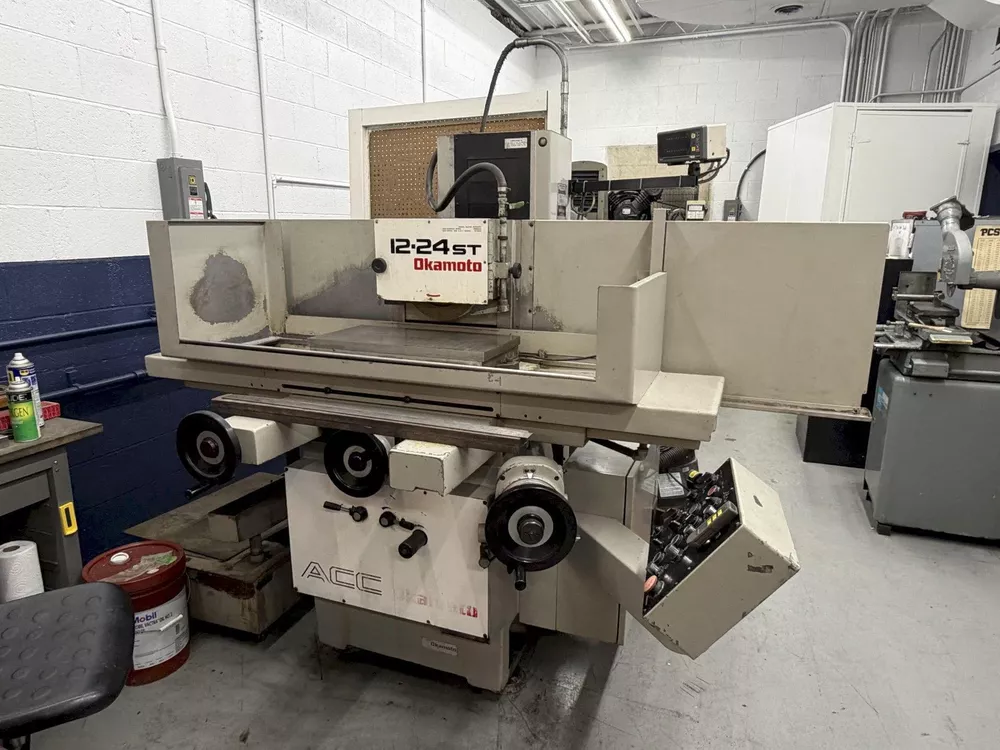

Okamoto 12/24 ST

X-Axis Travel: 29.5 in
Y-Axis Travel: 13.6 in
Z-Axis Travel: 13.7 in
Hydraulic Table Feed Rate: 1 to 82 FPM
Hydraulic Cross Feed Increment: 0.02" to 0.8"
Hydraulic Continuous Cross Feed: 4 to 40 IPM
Automatic Head Down Feed per Table Stroke: 0.0001" to 0.0015"
Max. Wheel Size: 12" Dia. x 1.5" Wide x 5" Hole
Spindle Motor: 5 HP, 3 Phase, 60 Cycle, 480 V
Hydraulic Pump Motor: 2 HP, 3 Phase, 60 Cycle, 480 V
Wheel Head Traverse Motor: 0.5 HP
Coolant System with Paper Filtration
12" x 24" Kanetsu Electro Magnetic Chuck & Control
Overall Machine Dimensions: 100" L x 76" W x 72" H
Coolant System Dimensions: 44" L x 28" W x 32" H
