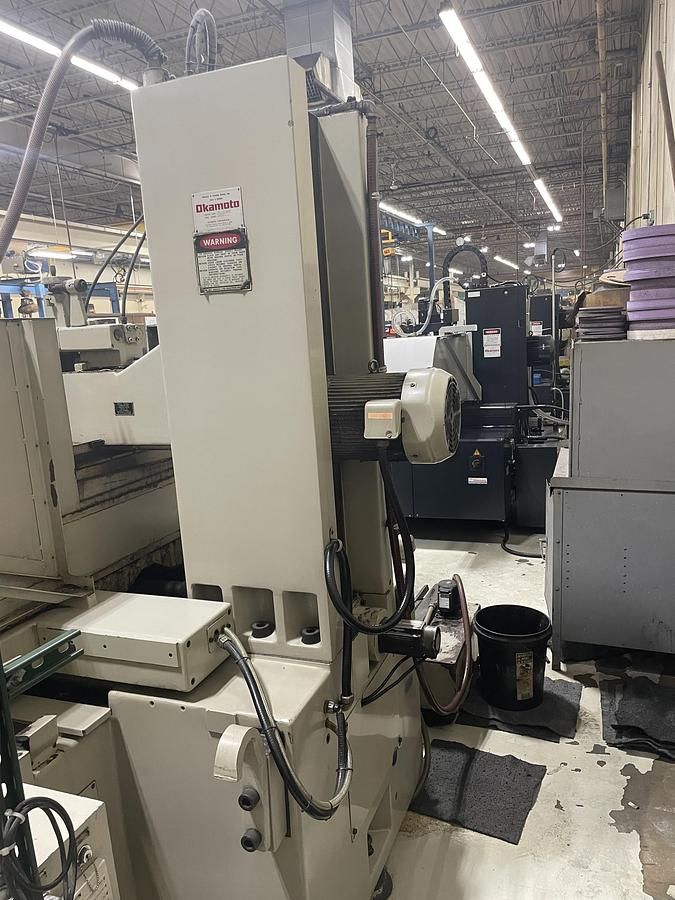

Okamoto 12.24DX

Max. longitudinal travel: 29.5"
Max. cross travel: 13.5"
Max. distance under 12" wheel to table surface: 13.6"
Magnetic chuck size: 12" x 24"
Table load capacity (with chuck): 925 lbs
T-slots (no. x width): 3 x 0.7"
Hydraulic feed rate: 1.0 – 82 ft/min
Hand feed per revolution: 1.85"
Hydraulic intermittent crossfeed: 0.02 – 0.8"
Hydraulic continuous crossfeed rate: 4 – 40 ft/min
Crossfeed per revolution: 0.250"
Handfeed dial graduation: 0.001"
Automatic vertical feed per table stroke: 0.00005 – 0.0015" (10 settings)
Rapid feed rate: 16"/min
Manual pulse feed (x.1): 0.00001"
Manual pulse feed (x1): 0.0001"
Manual pulse feed (x10): 0.001"
Grinding wheel size (D x W x B): 12" x 1.5" x 5"
Grinding wheel speed: 1800 RPM
Grinding wheel spindle motor: 5 HP
Hydraulic pump motor: 2 HP
Vertical rapid feed & downfeed motor: 0.5 HP AC servo
Power supply: 7.5 KVA
Floor space (L x W x H): 107" x 75" x 70"
Net weight: 5,280 lbs

Fully automatic cycle with rough/fine grinding and spark-out
Incremental infeed
Vertical manual pulse generator
MDI controller
Grinding wheel and wheel adapter
Built-in chuck controller
Cross movement lock
Table parks at right side
Splash cover with coolant nozzle and pipe
Full table backsplashguard
Vertical digital positioning display
Coolant system (34 gallon)
Hydraulic over-the-wheel dresser
Magnetic chuck
