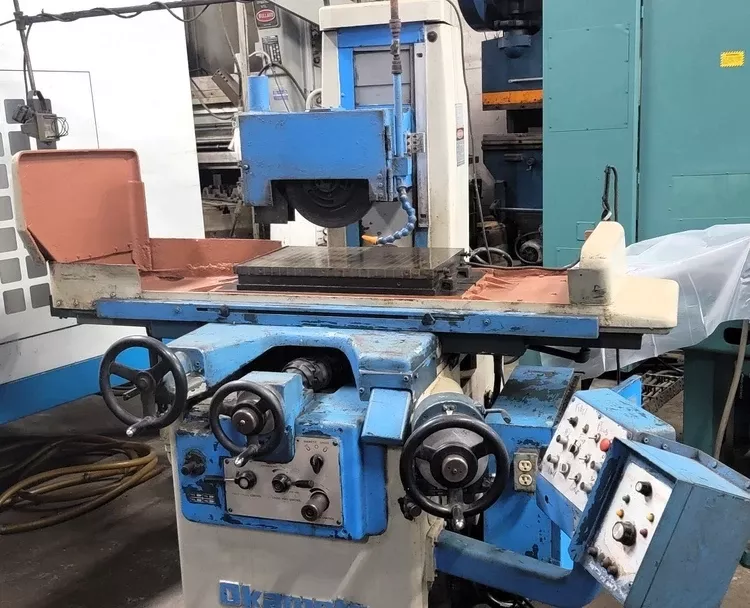

Okamoto 1624N

Table width: 16"
Table length: 24"
Horizontal spindle
Spindle motor: 5 HP
Grinding wheel diameter: 14"
Grinding wheel width: 1"
Grinding wheel bore: 5"
Electro-magnetic chuck: 16" x 24"
Power downfeed with rapid
Hydraulic table traverse
Max longitudinal table movement: 30"
Walker variable hold neutrifier control
Walker demagnetizer
Downfeed wheel graduations: 0.002"
Crossfeed wheel graduations: 0.001"
Coolant system
Work light
Electrical: Wired 440V
Machine weight: 5,300 lbs
Floor space: 80" x 80"
