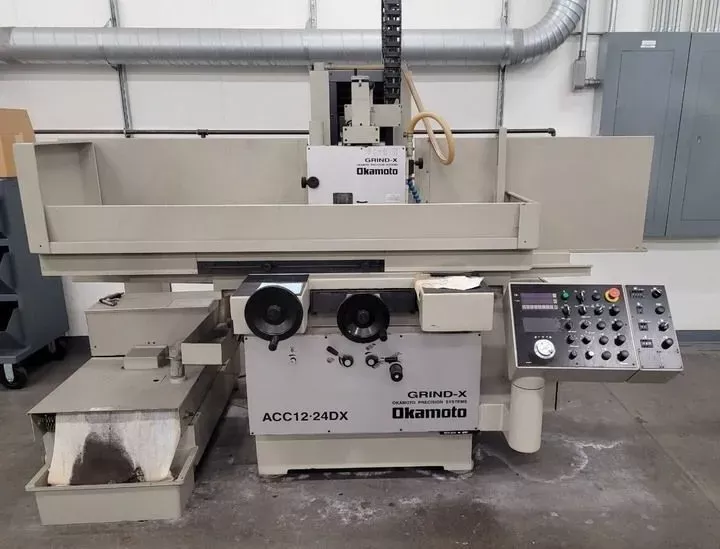

Okamoto ACC-12.24DXV

Table Working Capacity 12" x 24"
Table Capacity Manual (Cross x Long) 14" x 29.5"
Distance Table Top to Underside of Wheel (12" Wheel) 0.9" – 12.7"
Distance Table Top to Underside of Wheel (14" Wheel) 1.9" – 13.6"
Load Capacity 925 lbs
Longitudinal Feedrate 1 – 82 ft/min
Hand Feed per Revolution 1.85"
Cross Feed Hand Feed/Revolution 0.25"
Cross Feed Automatic Intermittent 0.02" – 0.8"
Cross Feed Automatic Continuous 4 – 40"
Servo Driven Automatic Downfeed 0.00005" – 0.0015" (10 Stages)
Number of Spark-Out Times 0 – 5
Vertical Rapid Feed & Downfeed 16 in/min
Grinding Wheel Size Maximum (Diameter x Width x Bore) 14"/12" x 1.5" x 5"
Grinding Wheel Speed 1,800 RPM
Grinding Wheel Spindle Motor 5 HP
Hydraulic Oil Pump Motor 2 HP
Vertical Rapid Feed & Downfeed Motor 0.5 HP AC Servo
Approx. Dimensions 107" x 75" x 82"
Approx. Weight 5,300 lbs
Full Overhead Auto Dresser Control (Programmable)
Automatic Wheel Head Retract
Programmable Dress Interval
Automatic Dress Compensation
Automatic Wheel Wear Compensation
Over-the-Wheel Dresser
Vertical Position Display
Rough Downfeed Selector Switch (10 Increments 0.00005" – 0.0005")
Finish Grind Selector (Fine) 0.001" or 0.002" above final grind position
Fine Downfeed Selector Switch (6 Increments 0.00005" – 0.0005")
Grind Cycle Switch
Fully Automatic: Surface, Bias, Plunge Grinding, Rough & Finish, Spark-Out, Table Park L-R
Fine Pole Electro-Magnetic Chuck
Paper Bed Coolant Filtration System
