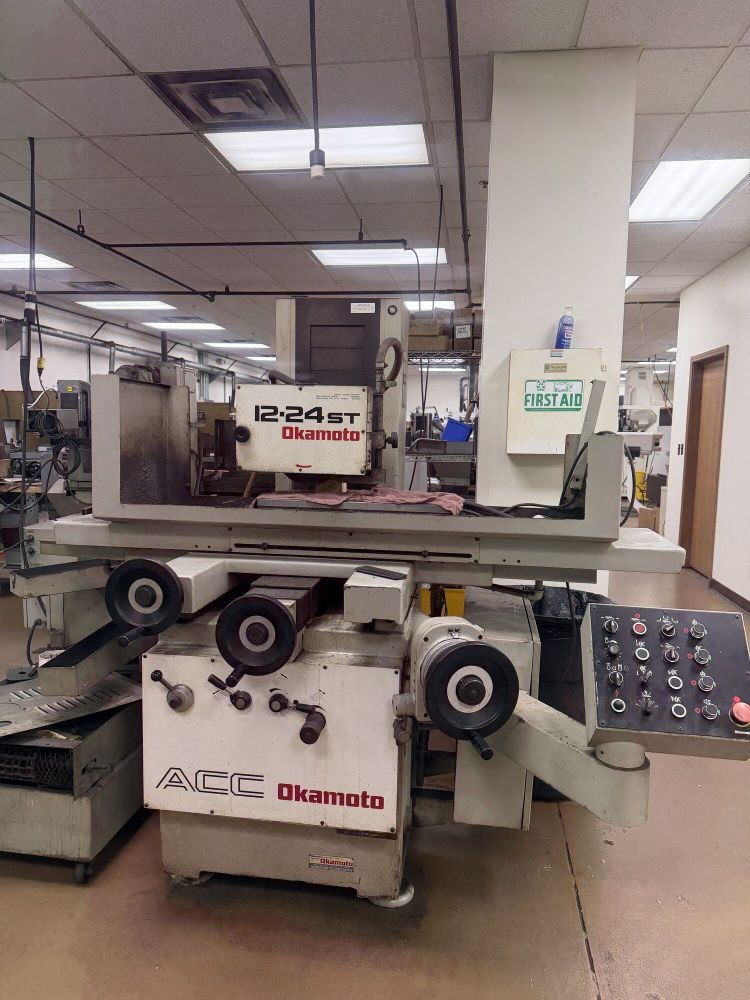

Okamoto ACC-1224ST

Maximum Grinding Length: 24"
Maximum Grinding Width: 12"
Maximum Height Under Wheel: 13.7"
Longitudinal Travel: 29.5"
Cross Travel: 13.6"
Longitudinal Hydraulic Feed: 1–82 ft/min
Cross Feed (Hydraulic Intermittent): 0.02"–0.8"
Cross Feed (Hydraulic Continuous): 0.4–40 IPM
Hand Cross Feed per Revolution: 0.25"
Wheel Graduation: 0.001"
Automatic Downfeed per Table Stroke: 0.0001"–0.0005"
Automatic Downfeed per Saddle Reversal: 0.0001"–0.0015"
Hand Vertical Feed per Revolution: 0.05"
Handwheel Graduation: 0.0001"
Rapid Vertical Feed: 19 IPM
Grinding Wheel Size: 12" × 1.5" × 5"
Spindle Motor: 5 HP
Hydraulic Pump Motor: 3 HP
Vertical Rapid Feed Motor: 0.5 HP
Centralized Operator Controls
Automatic Incremental Downfeed
Surface Grinding Mode
Plunge Grinding Mode
Automatic Spark-Out (Up to 5 Passes)
Power Elevation
Power Wheel Dresser
12" × 24" Electromagnetic Chuck
Variable Hold Neutralizer
Coolant System
Machine Dimensions: 74" × 103" × 74"
Machine Weight: 3,900 lbs
