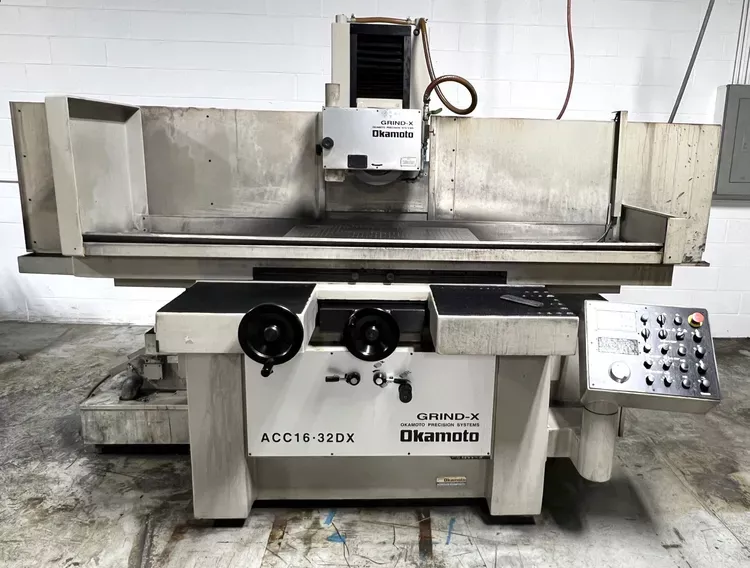

Okamoto ACC 16-32DX

OKAMOTO ACC 16-32DX
Year: 2014

Table-W 16"
Table-L 32"
Horz/Vert Horz
Power 5 hp
Grinding Wheel Width 1.5"
Grinding Wheel Dia. 14"
Dimensions 132" x 87" x 82"
Weight 8800 lbs

Specifications:
Table Working Capacity 16” x 32”
Table Load Capacity 1,540 lbs.
Longitudinal Feed Rate 1-82 ft/min
Han Feed per Revolution 1.85”
Cross Feed Hand Feed/ Revolution 0.25”
Cross Feed – Automatic Intermittent Feed 0.02 -0.8
Cross Feed – Automatic Continuous Feed 8-40
Auto. Downfeed 0.00005-0.0015 (10)
Vertical Rapid Feed & Downfeed 16 in/min
Grinding Wheel 14/12 x 1.5 x 5”
Speed 1,500 RPM
Grinding Wheel Spindle Motor 5 HP
Hydraulic Oil Pump Motor 3 HP
Vertical Rapid Feed & Downfeed Motor 0.5 AC Servo
Approximate Dimensions 132” x 87”
Approximate Height 82”
Approximate Weigh 8,800 lbs.
