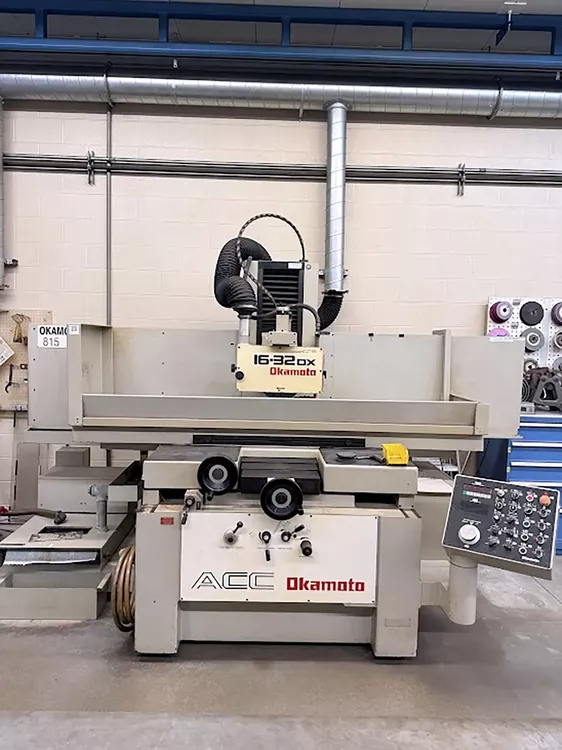

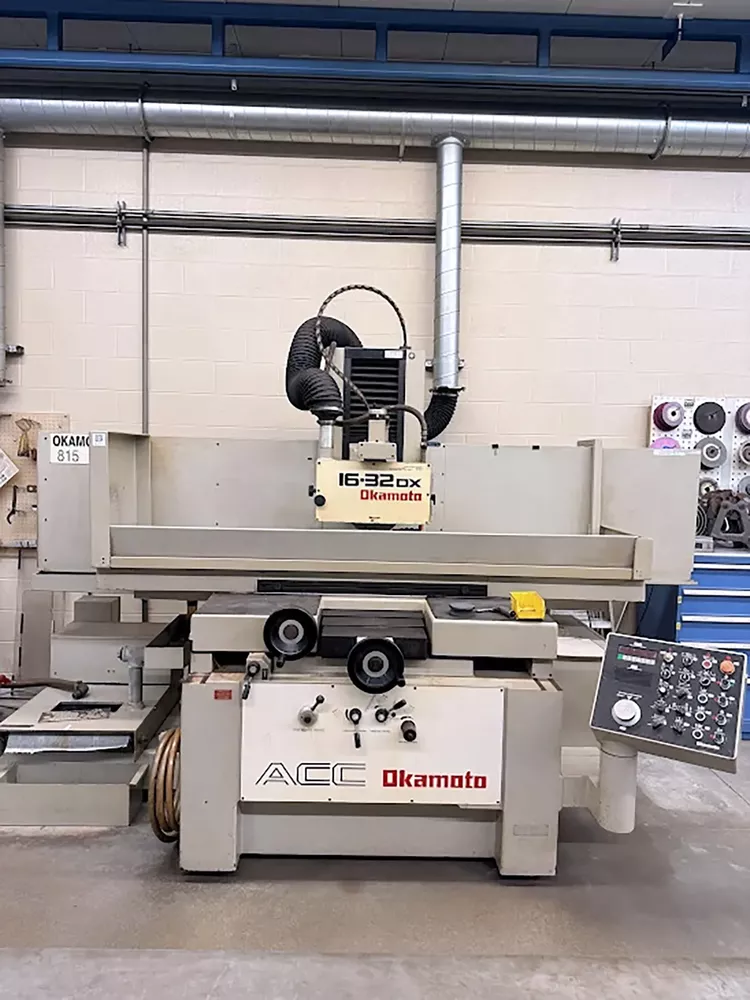

Okamoto ACC 16-32ox

Working Capacity 16" x 32"
Maximum Height Under Standard Wheel to Table Surface 21.5"
Table Speed, Infinitely Variable Up to 82' FPM
Max. Longitudinal Table Movement, Manual 38"
Auto Cross Feed Increment 0.002" to 0.80"
Auto Continuous Crossfeed 4' to 40' FPM
Crossfeed, Manual, Hand Feed per Rev. 0.25"
Graduation of Handwheel 0.001"
Max. Crossfeed, Manual 18"
Auto Incremental Downfeed Increments 0.00005" to 0.0015"
Power Rapid Wheel Positioning Rate 16" IPM
Spindle Motor 5 H.P.
Hydraulic Pump Motor 2 H.P.
Vertical Rapid Feed & Downfeed Motor 0.5 H.P.
Wheel Size 14" x 1.5" x 5"
Kanetsu Fine Pull Electro-Magnetic Chuck
Single Point Overhead Dresser
Vertical Position Display
Rough Downfeed Selector Switch (10) Selectable Increments 0.00005" – 0.0005"
Finish Grind Selector (Fine) 0.001" or 0.002" above final grind position
Fine Downfeed Selector Switch (Pre-Set Increment) (6) 0.00005" – 0.0005"
Grind Cycle Switch
Fully Automatic: Surface - Bias - Plunge Grinding - Rough & Finish - Spark-Out - Table Park L-R
Wheel Guard w/ Integrated Dust Collection Hood
Coolant Filtration System w/ Magnetic Separator
