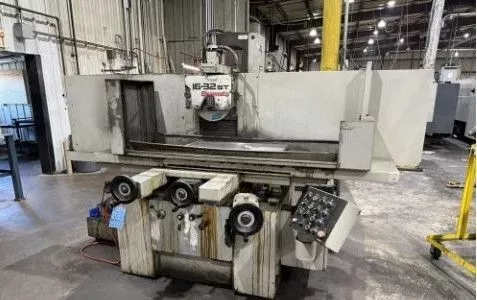

Okamoto ACC-16.32ST

Surface & Way Grinder
3-Axis Saddle-Type
Horizontal-Spindle
Electro-Magnetic Chuck
Incremental Power Down Feed
Hydraulic Overhead Wheel Dresser
Coolant Filtration System
Table Width 16"
Table Length 33.5"
Grinding Width Capacity 16"
Grinding Length Capacity 32"
Table Load Capacity 1540 lbs
Height Grinding Wheel to Table Max 21.6"
Longitudinal Table Travel 37.5"
Cross Table Travel 17.5"
Longitudinal Table Speed Variable 10–82 FPM
Cross Table Feed Range 0.02–0.8 IPM
Automatic Down Feed Variable 0.0002–0.0015 IPM
Grinding Wheel Diameter 12"
Grinding Wheel Width Max 1.5"
Grinding Wheel Hole Diameter 5"
Grinding Wheel Motor 5 HP
Hydraulic System Motor 3 HP
Overall Dimensions 132" x 87" x 82"
Weight 8800 lbs
