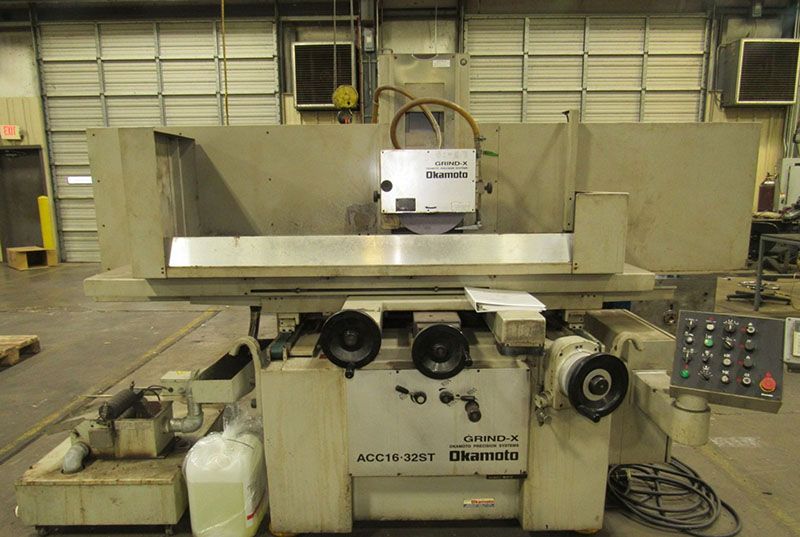

Okamoto ACC-1632ST

Okamoto ACC-1632ST
Year: 2012


MAXIMUM GRINDING LENGTH ............... 32"
MAXIMUM GRINDING WIDTH ................ 16"
MAXIMUM HEIGHT UNDER 12" WHEEL ........ 21.5"
MAXIMUM LONGITUDINAL MOVEMENT ......... 37.5"
MAXIMUM CROSS MOVEMENT ................ 17.5"

FEEDS:
LONGITUDINAL HYDRAULIC FEED ..... 10' TO 82' FPM
LONGITUDINAL FEED PER HANDWHEEL REV. .. 1.85"

CROSS FEED, HYDRAULIC INTERMITTENT .... 0.02" -.8"
HYDRAULIC CONTINUOUS .................. 4" - 40" IPM
HAND FEED/REVOLUTION .................. 0.250"
HANDWHEEL GRADUATION .................. 0.001"

VERTICAL MOVEMENT OF WHEELHEAD:
AUTO FEED/TABLE STROKE .......... 0.0001" - 0.0015"
AUTO FEED/SADDLE REVERSAL ....... 0.0001" - 0.0015"
HAND FEED/REVOLUTION .................. 0.05"
GRADUATION OF HANDWHEEL ............... 0.0001"
RAPID FEEDRATE ........................ 16" IPM

GRINDING WHEEL:
GRINDING WHEEL .................. 12" x 1- 1/2" x 5"
SPINDLE SPEED ......................... 1,800 RPM

RESEVOIR CAPACITY ..................... 48 GALS.

SPINDLE MOTOR ......................... 5 HP
HYDRAULIC PUMP MOTOR .................. 3 HP
VERTICAL RAPID FEED MOTOR ............. 0.5 HP

APPROX. FLOOR SPACE REQUIRED
FOR OPERATING ............. 130"R-L x 88"F-B x 80"H
APPROX. MACHINE WEIGHT ......... 7,600 LBS.
