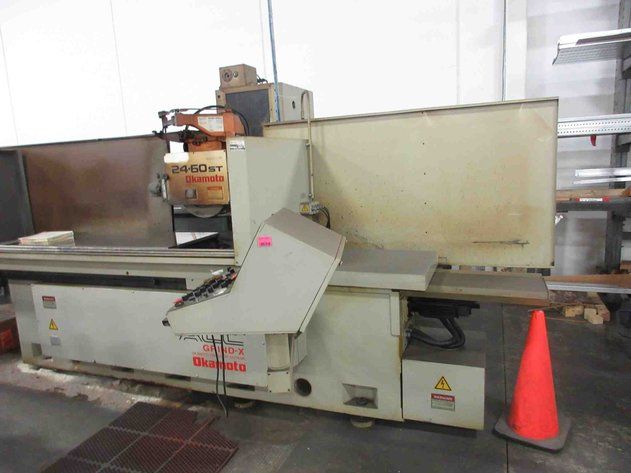

Okamoto ACC 24-60ST

Max Grinding Surface 24" x 61"
Max Capacity Under 20" Wheel 23.6"
Standard Chuck Size 24" x 60" x 4.3"
Max Table Load 3,300 LBS
Longitudinal Feed Max Travel 65"
Longitudinal Feed Rate 6.6 - 82 FT/MIN
Crossfeed Max Travel 26"
Crossfeed Auto Feed Travel 26"
Crossfeed Rapid Feed Rate 16.5 FT/MIN
Manual Hand Feed/Rev (X1/X5/X20) 0.01"/0.05"/0.2"
Manual Hand Wheel Grad (X1/X5/X20) 0.0001"/0.0005"/0.002"
Auto Feed Rough Infeed 0 - 0.0025"
Auto Feed Fine Infeed 0 - 0.0005"
Fine Grinding Allowance 0 - 0.002"
Air-Cut Feed Rate (Rough/Fine) 0 - 999,99999
Number of Spark Outs 0 - 5
Grinding Wheel Diameter x Width x Bore 20" x 3" x 8"
Spindle Speed 1,100 RPM
Wheel Spindle Motor 20 HP
Hydraulic Oil Pump for Dresser 0.5/2 HP
Vertical Feed (AC Servo Motor) 1.2 HP
Crossfeed (AC Servo Motor) 1.2 HP
Floor Space (W x D x H) 214" x 107" x 99"
Machine Weight 23,100 LBS
Equipped FANUC 21-G MDI Control
Equipped All Three Axes Driven by Servo Motors & Ballscrews
Equipped Rapid Approach & Retract to Start Position
Equipped Vertical & Cross Manual Pulse Generator
Equipped Rapid Feed Up & Down
Equipped Rough & Fine Grinding Cycles
Equipped Traverse, Plunge, Shift Plunge Grinding Cycles
Equipped Ball Screws on All Three Axes
Equipped 23-5/8" x 59-3/16" Electro-Magnetic Chuck & Controller
Equipped Over-the-Wheel Form Dresser, Manual Type
Equipped Large Coolant System with Paper Filtration
Equipped Wired for 3/60/480 Volts
