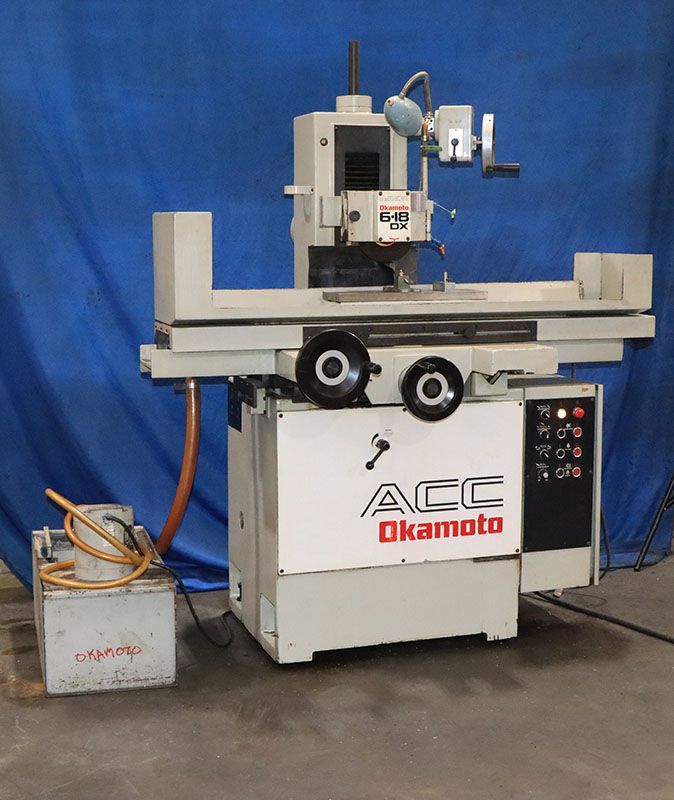

Okamoto ACC-618DX2

Grinding capacity: 6" × 18"
Maximum grinding height: 11.7"
Maximum longitudinal table travel: 21"
Maximum manual cross travel: 7"
Table speed: Up to 66 ft/min
Automatic cross feed increment: 0.004" – 0.2"
Automatic continuous cross feed: 0.5 – 13 ft/min
Manual cross feed per revolution: 0.10"
Cross feed handwheel graduation: 0.0004"
Downfeed per handwheel graduation (coarse): 0.0004"
Downfeed per handwheel graduation (fine): 0.0001"
Downfeed per handwheel revolution (coarse): 0.080"
Downfeed per handwheel revolution (fine): 0.020"
Grinding wheel size: 8" × 1/2" × 1-1/4"
Grinding wheel speed: 3450 RPM
Spindle motor: 2 HP
Cross feed motor: 1 HP
Hydraulic pump motor: 1 HP
Machine dimensions: 78" × 52" × 79"
Machine weight: 2,420 lbs
Heavy-duty cast iron construction
Double V-way table design
Hydraulic table traverse
Automatic electronic cross feed
Manual downfeed with coarse and fine selection
Gravity-fed lubrication system
6" × 18" electromagnetic chuck
Variable magnetic chuck control
Coolant system
Coolant guarding
Dust collection hose connection
Work light
Wired for 230 V
