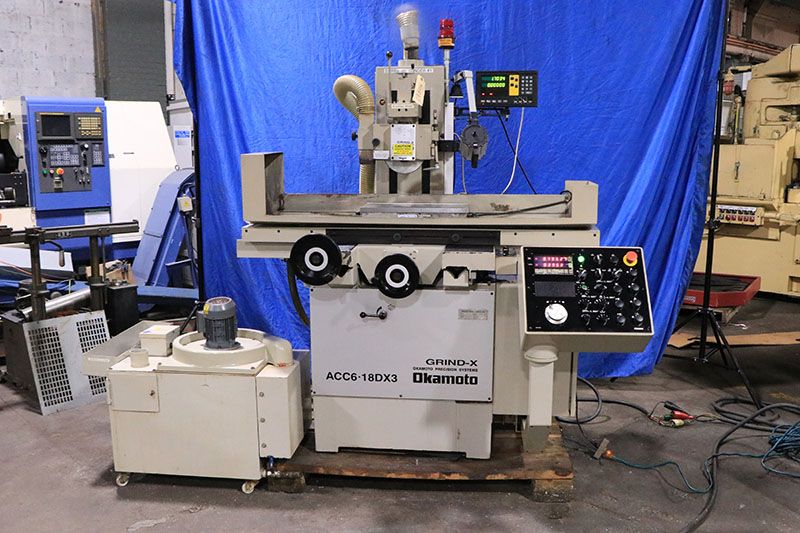

Okamoto ACC-618DX3

Technical Data:
Nominal Grinding Capacity 6" x 18"
Max. Height Under 8" Wheel 11.7"
Table Speed, Infinitely Variable Up to 82 FPM
Max. Longitudinal Table Movement, Manual 24"
Auto Cross Feed Increment 0.002" to 0.40"
Auto Continuous Crossfeed 4' to 40' FPM
Crossfeed, Manual, Hand Feed Per Rev. 0.25"
Grad. of Handwheel 0.0004"
Fine Feed Knob for Crossfeed, Grad. 0.00002"
Max. Crossfeed, Manual 7"
Auto Incremental Downfeed Increments 0.00005" to 0.0015"
Power Rapid Wheel Positioning Rate 16" IPM
Spindle Motor 2 HP
Wheel Size 8" DIA x 1" W x 1.25" B
Approx. Dimensions for Operation 85" x 63" D x 70" H
Approx. Machine Weight 2,500 LBS
"DX" Series Programmable Electronic Auto Incremental Downfeed
AC Servo Driven Downfeed
Auto Incremental Downfeed for Surface & Plunge Operations
Digital Display for Vertical Axis
Dual Rate Auto Downfeed with Coarse & Fine Selections
Sparkout Passes 0 to 5 with Auto Table Park at Completion
Electronic Handwheel for Manual Vertical Movement
Hydraulic Table Traverse
Electronic Automatic Crossfeed
6" x 18" "Kanetsu" KESL-1545 "LBP" Fine-Division Electro-Magnetic Chuck
Variable Hold Neutrofier Control
Combination Coolant System & Dust Collector
Over-the-Wheel Dresser with Micrometer Adjustment
"DRO Pros" EL402-G Two-Axis Digital Display
2 HP / 220-230-440-460 Volt Spindle Motor
