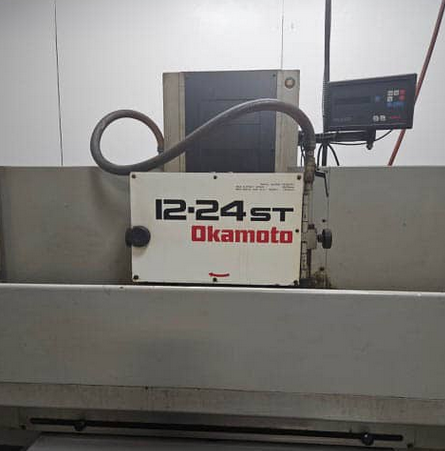

Okamoto ACC-1224-ST

Maximum grinding length 24"
Maximum grinding width 12"
Maximum height under 12" wheel 13.7"
Maximum longitudinal movement 29.5"
Maximum cross movement 13.6"
Longitudinal hydraulic feed 1' to 82' FPM
Cross feed hydraulic intermittent 0.02"–0.8"
Hydraulic continuous 0.4"–40" IPM
Hand feed per revolution 0.25"
Graduation of wheel 0.001"
Auto feed per table stroke 0.0001"–0.0005"
Auto feed per saddle reversal 0.0001"–0.0015"
Hand feed per revolution 0.05"
Graduation of handwheel 0.0001"
Rapid feedrate 19" IPM
Grinding wheel 12" x 1.5" x 5"
Spindle motor 5 HP
Hydraulic pump motor 3 HP
Vertical rapid feed motor 0.5 HP
Machine dimensions 74" F-B x 103" R-L x 74" H
Approximate machine weight 3,900 lbs
Equipped with DRO
Equipped with 12" x 24" magnetic chuck
