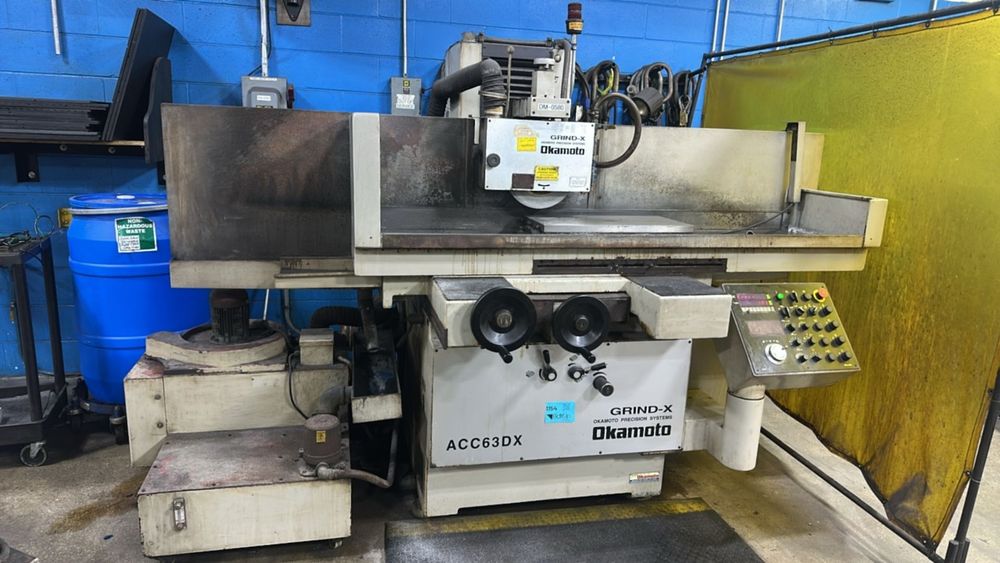

Okamoto ACC-63DX

Nominal grinding capacity 12" × 24"
Maximum height under 12" wheel 13.7"
Table speed infinitely variable up to 82 FPM
Maximum longitudinal table movement manual 30"
Automatic crossfeed increment 0.002" to 0.80"
Automatic continuous crossfeed 4 FPM to 40 FPM
Crossfeed manual hand feed per revolution 0.25"
Crossfeed handwheel graduation 0.001"
Optional crossfeed knob graduated to 0.0001"
Maximum crossfeed manual 14"
Automatic incremental downfeed increments 0.00005" to 0.0015"
Power rapid wheel positioning rate 16 IPM
Spindle motor 5 HP
Wheel size 12" × 1.5" × 5"
Approximate dimensions for operation 107" × 76" × 70"
Approximate machine weight 5,500 lb

DX programmable electronic auto incremental downfeed
Servo-driven downfeed
Automatic incremental downfeed for surface and plunge operations
Dual-rate auto downfeed coarse and fine
Digital display for cross and vertical axes
Sparkout passes 0 to 5 with automatic table park
Electronic handwheel for manual vertical movement
Power rapid wheel positioning
Automatic table park at cycle completion
Hydraulic table traverse
Automatic crossfeed
Self-contained hydraulic system
Spindle motor 5 HP 3/60/230–460 V
Handwheels in metric denominations
Electromagnetic chuck 12" × 24"
Variable hold control and demagnetizer
Combination coolant system and dust collector
Over-the-wheel dresser
Machine wired for 3/60/460 V
