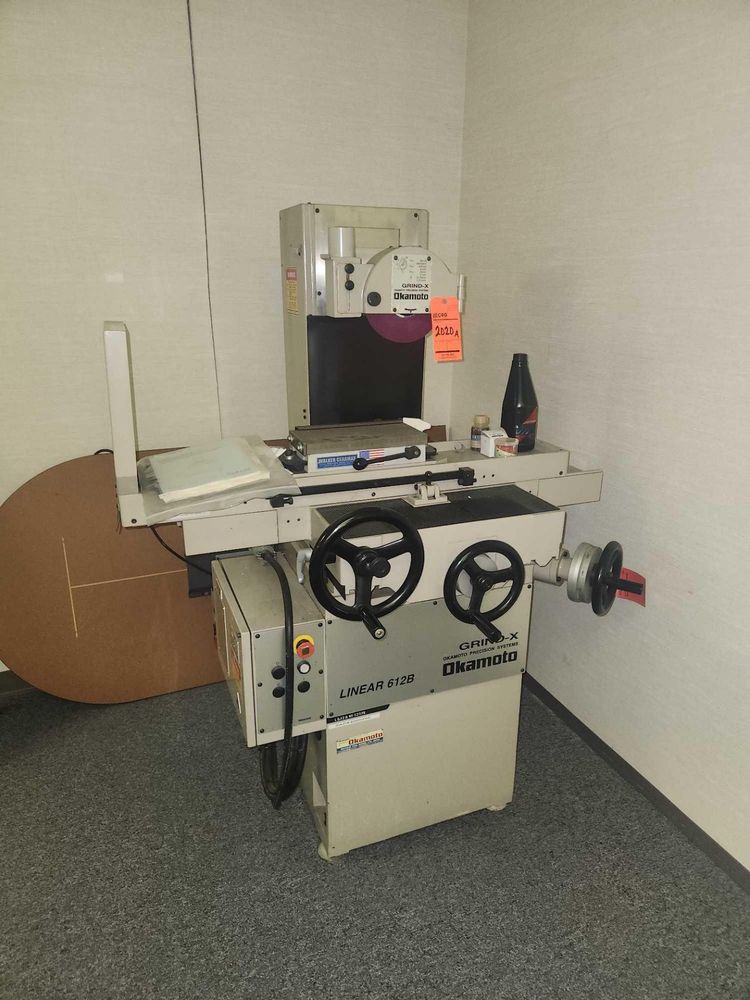

Okamoto LINEAR 612B

Nominal Grinding Capacity 6" x 18"
Table to Underside of 8" Grinding Wheel 14.27"
Maximum Longitudinal Table Travel 14.27"
Maximum Cross Travel 8.27"
Table Movement per Handwheel Revolution 5.12"
Saddle Movement per Handwheel Revolution 0.1"
Saddle Movement per Handwheel Revolution 0.05"
Handwheel Graduation 0.0001"
Spindle Motor 2 HP
Grinding Wheel Speed 3450 RPM
Wheel Size 8" x 1/2" x 1-1/4"
Approx. Dimensions for Operation 64" x 55.3" D x 68" H
Approx. Machine Weight 1,850 Lbs.
6" x 12" Walker Fine-Division Permanent Magnetic Chuck
Set Up for Dry Grinding with Inlet on Side of Wheel Cover
Automatic Recirculating Lubrication System
Meehanite Cast Iron, Heavy Duty Construction
Smooth Table Movement Through Reliable Belt Drive
Table Glides on Linear Ball Bearings
Recirculating Lubrication System
2 HP Direct Drive Spindle, 3/60/230-460 Volts
