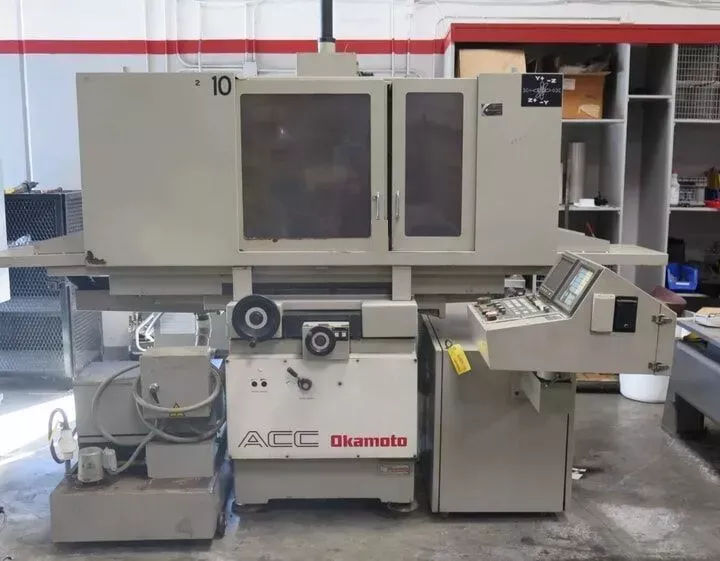

Okamoto ACC-8.20DXNCP

Table Size: 8 x 20 in
Max Table Travel: 26 in
Max Distance Table to Wheel: 15.6 in
Magnetic Chuck Size: 8 x 20 x 3.2 in
Load Capacity: 440 lbs
Longitudinal Feed Rate: 3–82 fpm
Crossfeed Pulse: 0.00001 / 0.00010 / 0.00100 in
Crossfeed Jog: 0–40 ipm
Crossfeed Auto Intermittent: 0.02–0.4 in
Crossfeed Grinding Feed: 0.010–40 ipm
Vertical Feed Rate: 0.010–40 ipm
Vertical Rapid: 40 ipm
Spark-Out Passes: 0–5
Grinding Wheel Size: 8 x 0.75 x 1.25 in
Grinding Wheel Speed: 3600 rpm
Spindle Motor: 2 hp
Vertical Feed Motor: 0.7 hp
Hydraulic Pump Motor: 1 hp
Machine Weight: 4630 lbs
Machine Dimensions: 95 x 73 x 98 in
Control Type: Fanuc O-M
Cross Feed Manual Pulse Generator
Servo Driven Wheel Vertical Feed
Automatic Grinding Cycles
Built-In Chuck Control with Demagnetizer
Retract Type Wheel Dresser
Paper Bed Coolant Filtration System
Oil Cooler
Full Enclosure
