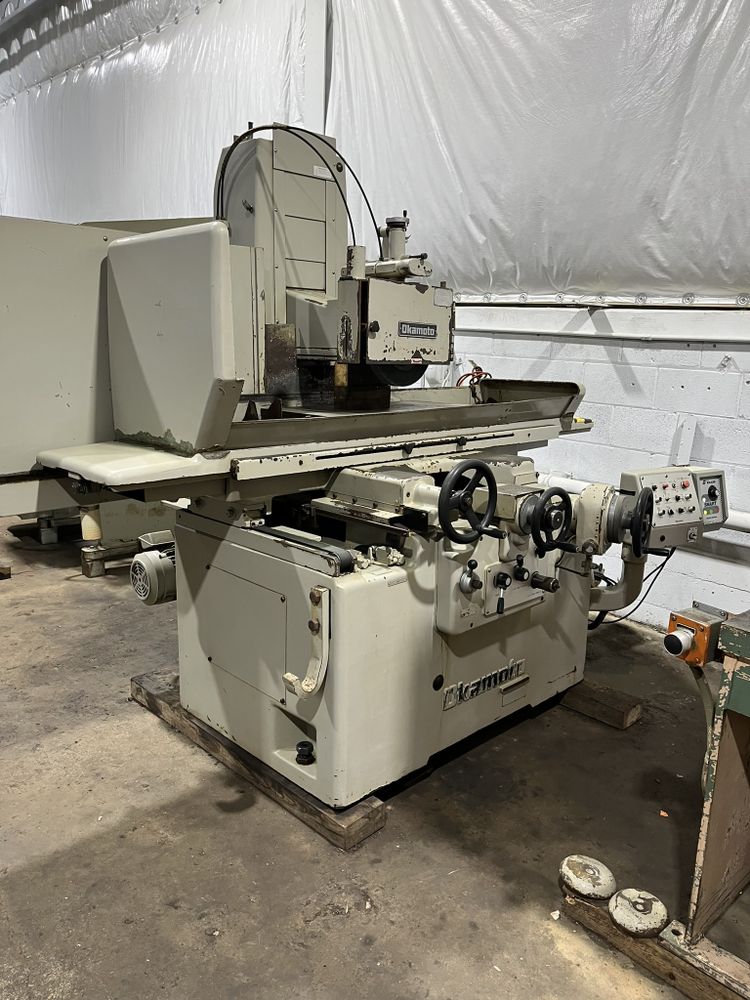

Okamoto 1632N Hydraulic Surface Grinder

Maximum grinding capacity: 16 × 32 in
Maximum vertical clearance: 20.6 in
Table working surface: 15.7 × 33.5 in
Maximum table load: 1550 lb
Maximum cross travel: 17.3 in
Maximum longitudinal travel: 37.4 in
Hydraulic table speed: 10–83 fpm
Hydraulic step cross feed: 0.02–0.8 in
Hydraulic continuous cross feed: 8–40 IPM
Hand cross feed per revolution: 0.25 in
Automatic vertical feed per table stroke: 0.0001–0.0015 in
Automatic vertical feed per saddle reversal: 0.0001–0.0015 in
Hand vertical feed per revolution: 0.005 in
Manual incremental vertical feed: 0.0001–0.0015 in
Grinding wheel diameter: 12 in (60 Hz)
Grinding wheel diameter: 14 in (50 Hz)
Grinding motor: 5 HP
Hydraulic pump motor: 2 HP
Vertical rapid feed motor: 0.5 HP
Overall dimensions: 47 × 66 × 83 in
Approximate weight: 4800 lb
