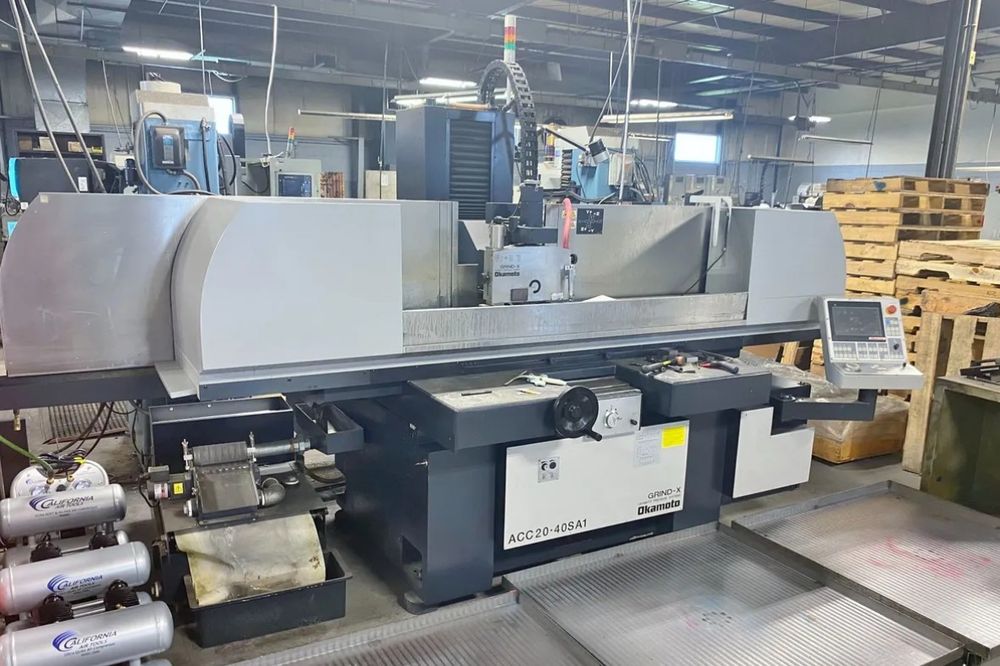

Okamoto ACC20-40SA1

Chuck size: 39.4"
Table width: 19.7"
Table length: 40"
Grinding wheel diameter: 14"
Hydraulic longitudinal feed: 1–82 fpm
Manual cross feed: 0.2"/rev
Cross feed handwheel graduation: 0.0008"
Automatic intermittent cross feed: 0.02"–0.79"
Automatic continuous cross feed: 0.004"–0.04" ipm
Automatic incremental downfeed: 0.00005"–0.0015"
Manual pulse feed: 0.001"/0.01"/0.05"
Vertical handwheel graduation: 0.00001"/0.0001"/0.0005"
Sparkout: 0–5
Rapid feedrate: 23.6 ipm

MDI touchscreen control
3-axis automatic feeds
Hydraulic saddle-type surface grinder
Manual cross feed
Automatic incremental downfeed
Touch pad control
Teach function for crossfeed position
Micro feeder
Programmable dressing
Dress compensation
AC-driven vertical feed
Manual pulse generator
Grinding depth setting
Automatic grinding cycle
Rapid feed mode
Manual vertical feed
Step grinding function
Variable hold neutrofier chuck control
Coolant system
Paper filtration
Magnetic separator
Work light
Signal tower
Variable speed grinding spindle option
In plant
Under power
Available immediately
