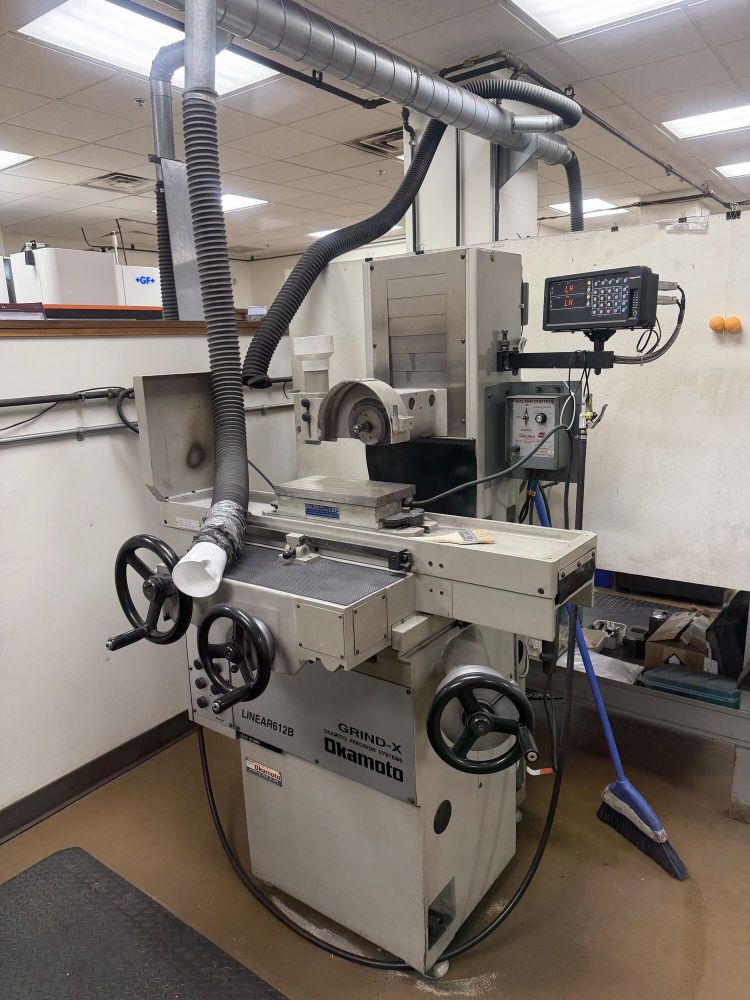

Okamoto L6.12B

Longitudinal Table Travel: 14.27 in
Cross Travel: 8.27 in
Table Travel per Handwheel Revolution: 5.12 in
Saddle Travel per Handwheel Revolution: 0.1 in
Saddle Increment: 0.05 in
Handwheel Graduation: 0.0001 in
2-Axis Magnescale Digital Readout
Electromagnetic Chuck
O.S. Walker Variable Hold Neutrofier/Chuck Control
Dry Grinding Configuration
Automatic Recirculating Lubrication System
Meehanite Cast Iron Construction
Linear Ball Bearing Table
Belt-Driven Table
Spindle Speed: 3,450 rpm
Spindle Motor: 2 hp
Grinding Capacity: 6 × 18 in
Maximum Distance Table to Wheel: 14.27 in
Grinding Wheel Size: 8 × 1/2 × 1-1/4 in
Electromagnetic Chuck Size: 6 × 12 in
Power Supply: 460 V, 3 Phase
Power Rating: 3 kVA
Machine Dimensions: 64 × 55.3 × 68 in
Machine Weight: 1,850 lb
