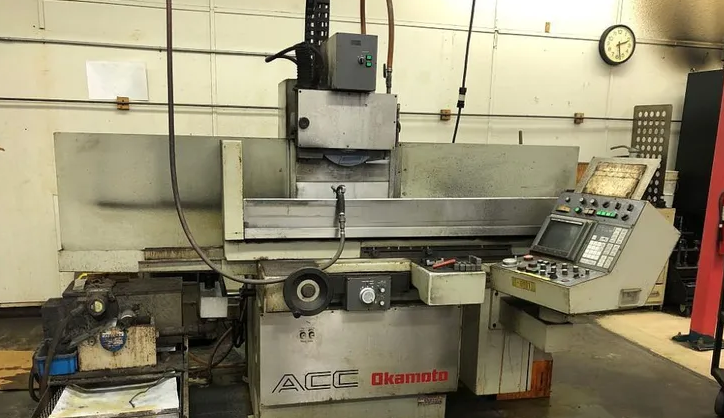

Okamoto ACC12-24EX

Table size: 12" x 24"
Longitudinal table travel: 29.5"
Spindle center to table distance: 13.6"
Maximum table load: 925 lb
Longitudinal table speed range: 3–82 FPM
Cross feed manual per revolution: 0.0001" / 0.0005" / 0.002"
Cross feed automatic: 0.02"–0.8"
Down feed automatic incremental: 0.00005"–0.0015"
Power rapid elevation: 40 IPM
Spindle motor power: 5 hp
Grinding wheel size: 12" x 1.5" x 5" bore
Grinding wheel speed: 1800 RPM
Overall dimensions: 108" x 82" x 71"
Machine weight: 6200 lb
Magnetic chuck size: 12" x 24"

Electromagnetic chuck
Fine pole magnetic chuck
Servo-driven cross feed
Servo-driven vertical feed
Automatic downfeed
Rough feed
Fine feed
Rapid wheelhead advance
Wheel retract to start position
Shift plunge grinding cycle
Chuck datum grinding cycle
Automatic sparkout
Programmable over-the-wheel dresser
Automatic wheel dressing
Automatic wheel wear compensation
Automatic dress infeed
Rough dress feed
Fine dress feed
Programmable dress speeds
Programmable dress intervals
Fanuc programmable MDI control
Coolant system
Magnetic swarf separator
