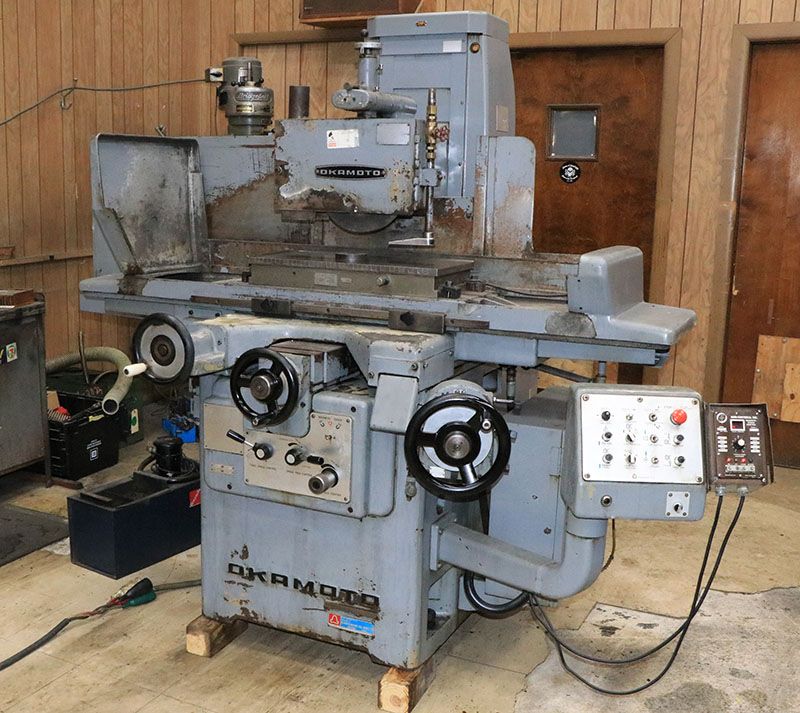

Okamoto ACCUGAR 124N

Maximum Grinding Length 24"
Maximum Grinding Width 12"
Maximum Height Under 14" Wheel 13.7"
Maximum Longitudinal Movement 29.5"
Maximum Cross Movement 13.6"
Longitudinal Hydraulic Feed 1' to 100' FPM
Cross Feed Hydraulic Intermittent 0.02" - 0.8"
Cross Feed Hydraulic Continuous 0.4" - 40" IPM
Hand Feed/Rev 0.25"
Graduation of Wheel 0.001"
Vertical Auto Feed/Table Stroke 0.0001" - 0.00015"
Vertical Auto Feed/Saddle Reversal 0.0001" - 0.00015"
Vertical Hand Feed/Rev 0.05"
Graduation of Handwheel 0.0001"
Rapid Feedrate 19" IPM
Grinding Wheel 12" x 1-1/2" x 5"
Spindle Motor 5 HP
Hydraulic Pump Motor 3 HP
Vertical Rapid Feed Motor 0.5 HP
Dimensions 74" FB x 103" RL x 74" H
Approx. Machine Weight 5,000 Lbs.
Hydraulic Table Traverse
Auto Crossfeed
Auto Incremental Downfeed
Automatic Sparkout up to 5 Passes
Power Elevation
12" x 24" Kanetec KET-3060-212BY Electromagnetic Chuck
Semi-Controls Inc. Neutrofier Control with Variable Holding Feature
Graymillies Coolant System
5 HP / 3 / 60 / 230-460 Volt Spindle Motor
Machine Wired for 220 Volts
