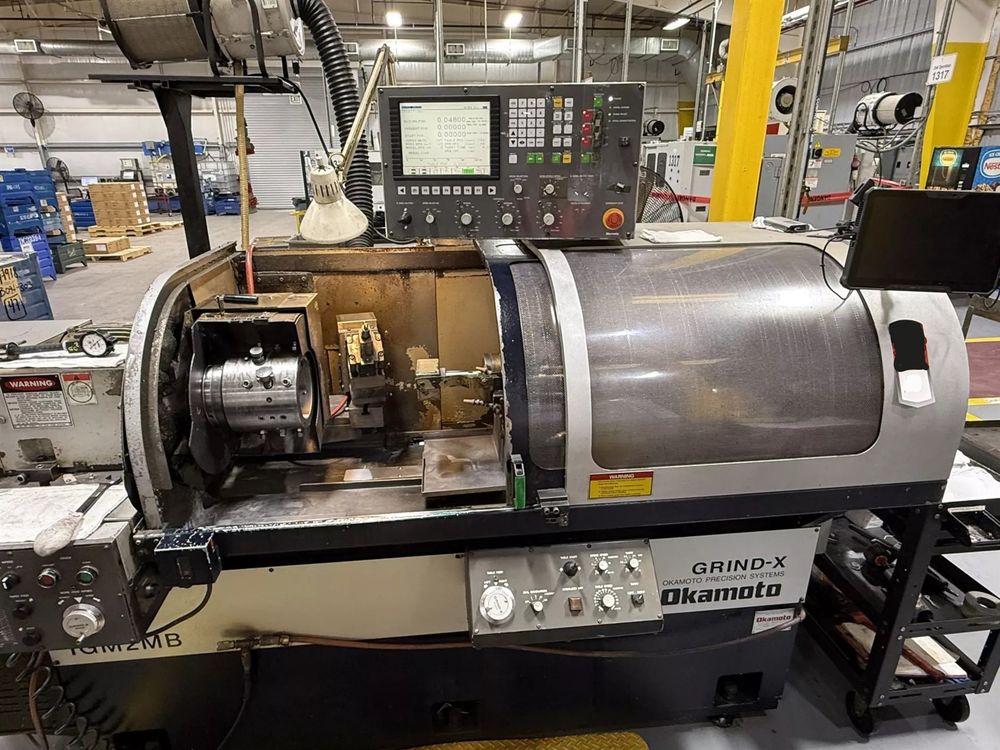

Okamoto IGM-2MB

Table Travel: 20"
Grinding Stroke: 0" – 8"
Crossfeed Travel: 9.4"

CNC Control: Fanuc MDI
Programmable Auto Grinding Cycle
Conversational Programming
Size Compensation
Repeat Dress
Interrupted Dressing
Continuous / Intermittent Feed

Swing Over Table: 24"
Swing Inside Chuck Cover: 14"
I.D. Grinding Range: 0.24" – 8.0" Diameter

Workhead Speed: 50 – 850 rpm
Workhead Swivel: -5° / +15°

Grinding Spindle Speed: 10,000 rpm
Grinding Wheel Spindle Motor: 5 hp
Workhead Motor: 2 hp

Least Programmable Increment: 0.00001"
Program Storage Capacity: 36

Machine Dimensions: 96" x 54" x 69"
Machine Weight: 6,160 lbs

Mist Collector
Coolant System with Magnetic Separator
