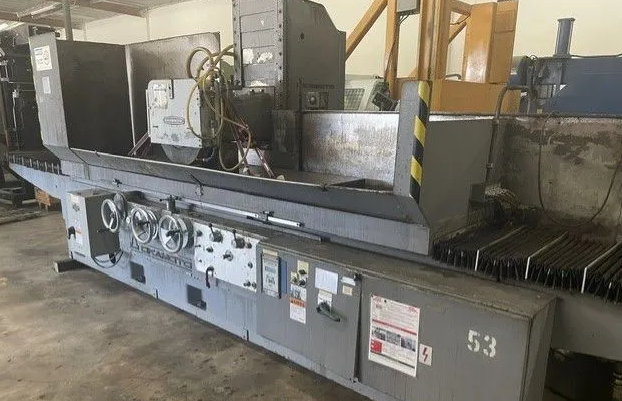

Okamoto PSG-205

Table working surface: 80.71" x 19.7"
Maximum longitudinal travel: 84.64"
Maximum cross travel: 20.86"
Automatic longitudinal feed rate: 1 to 100 FPM
Cross feed automatic increments: 0.20" to 1.37" (intermittent)
Cross feed speed: 1–16.4 ft/min (continuous)
Automatic feed per column reversal: 0.00002" to 0.002"
Vertical rapid feed: 12"/min
Maximum chuck size: 80" x 20"
Maximum distance spindle to table: 23.4"
Wheel size: 20" x 2" x 5"
Wheel speed: 1100 RPM
Spindle drive: 10 HP
Hydraulic motor: 7.33 HP
