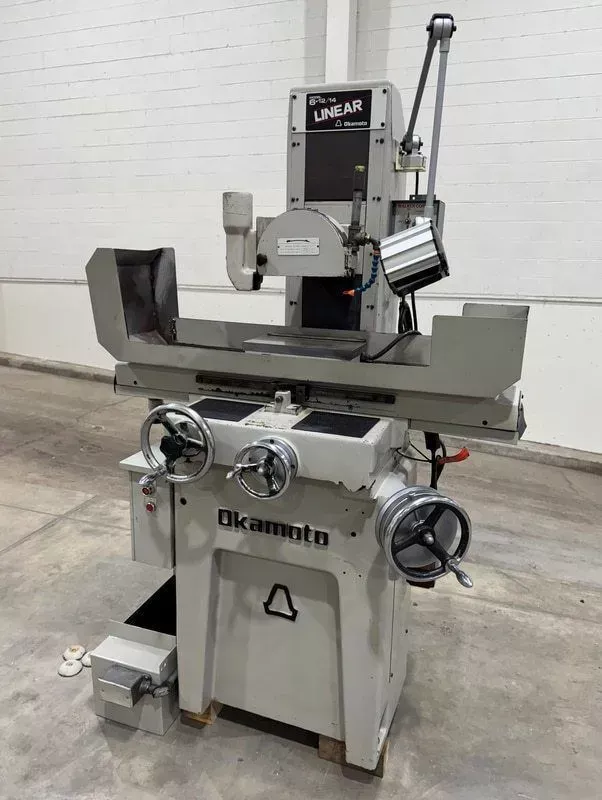

Okamoto Linear PFG 612

Grinding wheel diameter 8"
Grinding wheel width 1/4" to 1"
Grinding wheel bore 1-1/4"
Maximum grinding width 7"
Maximum grinding length 14"
Table surface 6.2" x 14.17"
Distance from table to spindle center 18"
Table longitudinal travel 15"
Table cross travel 8"
Handwheel table longitudinal feed 5.12"/rev
Handwheel saddle cross feed 0.1"/rev
Handwheel wheelhead vertical feed 0.005"/rev
Handwheel graduation 0.0001"
Motor 2 HP
Electrics 220-460V/3Ph/60Hz
Dimensions 59" L x 55" F-B x 68" H
Weight 1800 lbs

6" x 12" OS Walker electromagnetic chuck with control
Coolant system
Automatic lubrication
Ball bearing table
Work light
