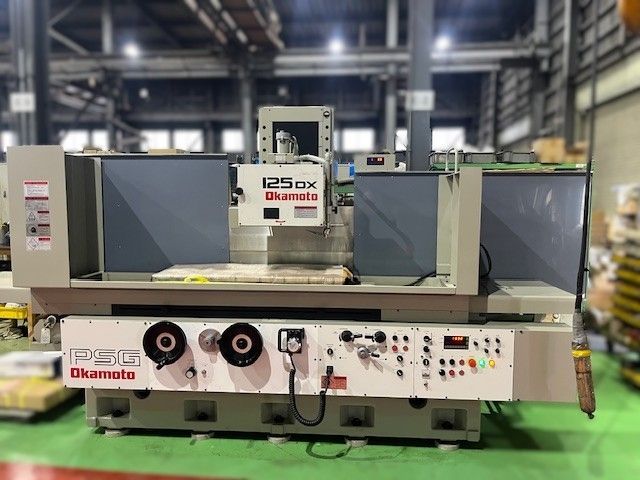

Okamoto PSG-125DX

Surface Grinder
OKAMOTO PSG-125DX

Table working surface size : 1,250 x 500 mm
Table travel : 1,450 x 560 mm
Distance from table top to grinding wheel bottom : 595 mm
Chuck dimensions : 1,200 x 500 x 110 mm
Maximum work mass : 500 kg
T-slot width x number : 20 mm x 3
Automatic feed rate for rough grinding : 0.001-0.05 mm 　　　　
Grinding wheel (out dia. x width x in dia.) : φ510 x 50 x 127 mm 　　　　
Grinding wheel rotation speed : 1,100 rpm
　　
Floor space required : 5,400 × 2,505 mm　　
Height : 2,200 mm 　　　　
Machine weight : Approximately 7,500 kg
Water injection device (120ℓ)
