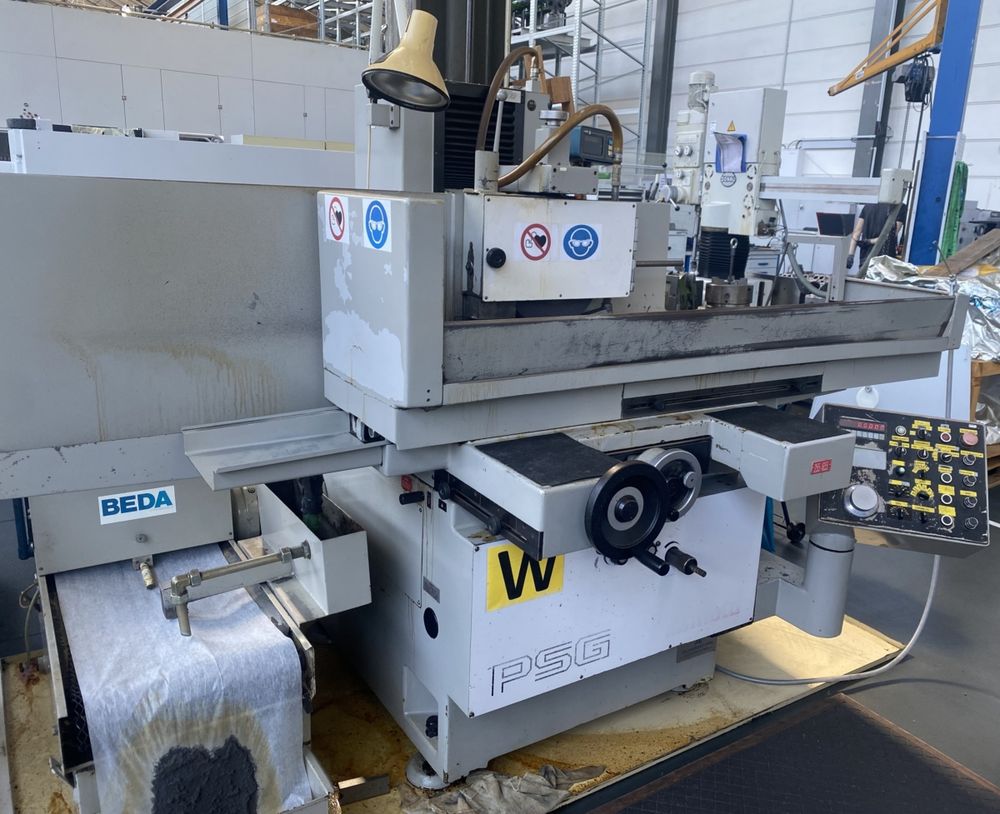

Okamoto PSG 63 UDX

Table magnet size: 600 x 300 mm
Grinding wheel size: 355 x 38 mm
Crossbeam size: 750 x 340 mm
Maximum workpiece weight: 420 kg
Maximum height from table to spindle centre: 500 mm
Feed rate: 0.3–25 m/min
Spindle motor power: 3.7 kW
Machine dimensions: 2730 x 1910 x 1800 mm
Vertical height display
Cross travel display
Automatic downward pull display
Hydraulic movement
Various grinding wheels
Documentation
Coolant system
Electromagnetic chuck
