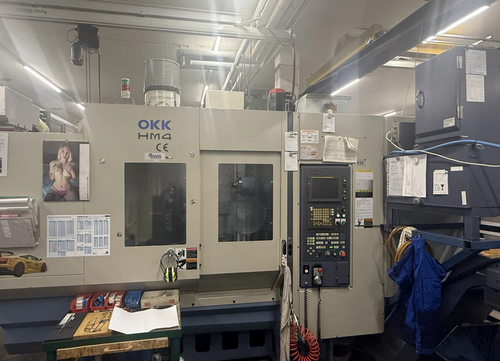

OKK HM 4 4 Axis

X-axis travel: 560 mm
Y-axis travel: 510 mm
Z-axis travel: 560 mm
Rapid traverse: 40 m/min
Work feed rate: 1 – 40 m/min
Automatic pallet changer: 2 pallets
Control: FANUC 160is-MB
Table size: 400 x 400 mm
Maximum workpiece dimensions: 620 x 620 x 700 mm
Maximum table load: 400 kg
Spindle taper: ISO 40
Spindle speed: 100 – 12000 rpm stepless
Maximum torque: 150 Nm
Distance spindle nose to table: 150 – 710 mm
Tool magazine capacity: 60 positions
Tool diameter: 82 mm
Tool diameter with free adjacent pockets: 140 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Tool change time: 1 s
Chip-to-chip time: 3.4 s
Coolant tank capacity: 400 l
Coolant through spindle: 20 bar
Overall dimensions: 2100 x 3995 x 2884 mm
Chip conveyor
Rotary table
Oil mist extractor
Status light
Number of pallets: 8
