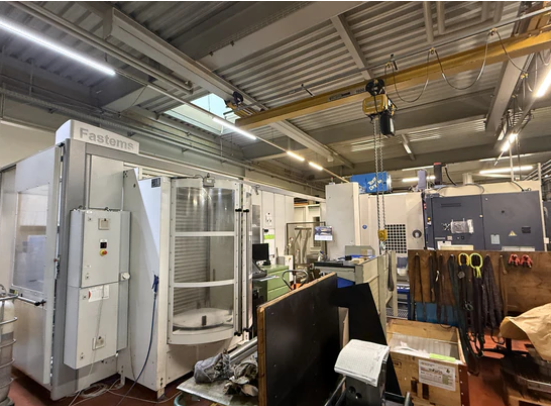

OKK HM 63 4 Axis

620 mm X-axis travel
560 mm Y-axis travel
560 mm Z-axis travel
4-axis total
360° pallet rotation (implied from pallet changer device)
FANUC Series 16i-MC control
Coolant system 400 l
Coolant through spindle 20 bar
Chip conveyor
Status light
400 × 400 mm pallet size
450 kg max workpiece weight
BT40 spindle nose
150–710 mm spindle-to-table distance
30–16000 rpm spindle speed (2 steps)
18.5 / 22 kW spindle motor
1–40000 mm/min feed range
40 m/min rapid traverse
40-tool magazine
82 mm max tool diameter
140 mm tool diameter with free adjacent pockets
300 mm tool length
12 kg max tool weight
1.3 s tool change time
4 s chip-to-chip time
4–6 bar air
10000 kg machine weight
3940 mm machine length
2510 mm machine width
2900 mm machine height
