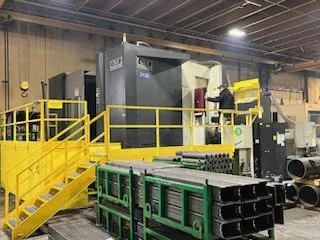

OKK HM1600 5 Axis

OKK HM1600
Year: 2011

Pallet size: 62.99" x 49.21"
Number of pallets: 1
Pallet weight capacity: 17,621 lbs
Pallet surface to spindle center: 3.94" to 68.90"
Pallet center to spindle gauge line: 9.84" to 78.74"
Workpiece dimensions: 98.43" D x 72.83" H

X axis travel: 94.49"
Y axis travel: 64.96"
Z axis travel: 68.90"
B axis travel: 0.001 degrees
W axis travel: 11.8"

Rapid traverse rates X, Y, Z: 1653 IPM
Rapid traverse rate B axis: 0
Cutting feed rate: 787 IPM
Spindle speed: 4,000 RPM BIG PLUS
Spindle taper: 50 CT
Number of ranges: 3
Main motor: 25 HP
Automatic tool changer: 60 ATC

Tool diameter max: 4.53" / 11.81"
Tool length max: 23.62"
Tool weight max: 66.1 lbs
Tool change time: 2.5 seconds

Machine weight: 88,105 lbs
Built-in rotary table
Coolant through spindle 1000 PSI
Fanuc NC option package
Spindle air blow
Oil skimmer
Renishaw RMP600 spindle probe
Module air mist collector
Bar spindle extension travel - W axis
M-codes 8 sets
5th axis drive
Tsudakoma RTV-504 rotary table with 6" hole
Chilled ball screws
Work platform

Fanuc 31I-A5 CNC 5-axis control
Camera system
Lift-up chip conveyor
Dual Y and Z axis ball screws
4.33" W axis quill diameter with 11.8" quill travel
Twin screw type chip augers
